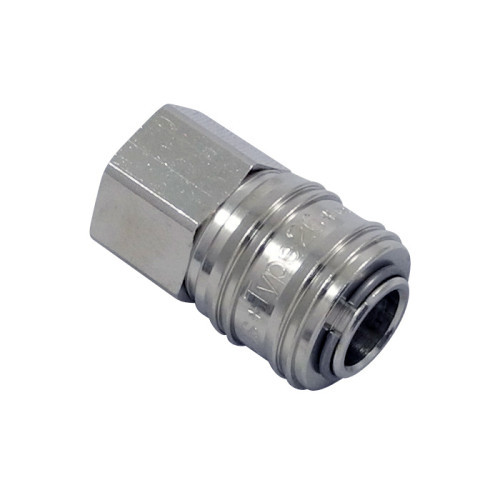

Cupla rapida mama, seria 26, filet interior
Tip produs: 26KFI
Profil standard industrial European
Seria 26, Diametru nominal DN 7,2
straight-through
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida mama, seria 26, alama / alama nichelata, cu filet interior, fara supapa de inchidere.
Cuple tata compatibile: seria 25, seria 26

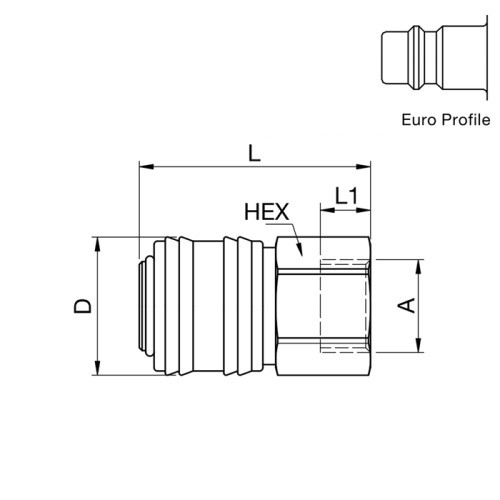

| Cod | A | HEX mm | ØD mm | L mm | L1 mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 26KFIW13MPX | G1/4 | 22 | 25 | 41 | 9 | alama |
|
Adauga |
| 26KFIW13MPN | G1/4 | 22 | 25 | 41 | 9 | alama nichelata |
|
Adauga |
| 26KFIW17MPX | G3/8 | 22 | 25 | 41 | 9 | alama |
|
Adauga |
| 26KFIW17MPN | G3/8 | 22 | 25 | 41 | 9 | alama nichelata |
|
Adauga |
| 26KFIW21MPX | G1/2 | 24 | 25 | 44 | 10 | alama |
|
Adauga |
| 26KFIW21MPN | G1/2 | 24 | 25 | 44 | 10 | alama nichelata |
|
Adauga |
