Cupla rapida mama, seria 26, filet interior
Tip produs: 26KBI
Profil standard industrial European
Seria 26, Diametru nominal DN 7,2
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida mama, seria 26, alama / alama nichelata, cu filet interior si supapa pentru inchidere dubla.
Cuple tata compatibile: seria 25, seria 26

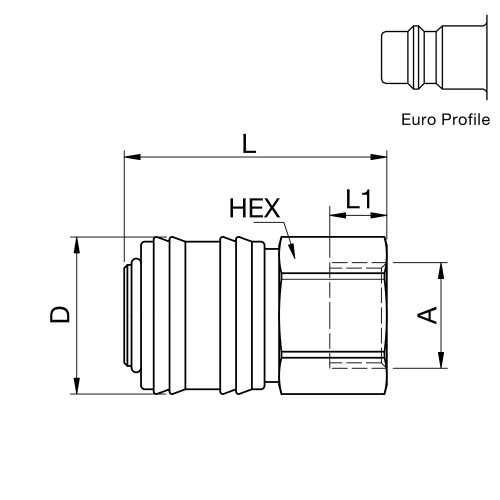

| Cod | A | HEX mm | L mm | L1 mm | ØD mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| 26KBIW10MPX | G1/8 | 22 | 41 | 8 | 25 |
|
Adauga |
| 26KBIW13MPX | G1/4 | 22 | 41 | 9 | 25 |
|
Adauga |
| 26KBIW17MPX | G3/8 | 22 | 41 | 9 | 25 |
|
Adauga |
| 26KBIW21MPX | G1/2 | 24 | 44 | 10 | 25 |
|
Adauga |
| 26KBIM14MPX | M14x1.5 | 22 | 41 | 9 | 25 |
|
Adauga |
| 26KBIM16MPX | M16x1.5 | 22 | 41 | 9 | 25 |
|
Adauga |
| 26KBIM18MPX | M18x1.5 | 22 | 41 | 9 | 25 |
|
Adauga |
