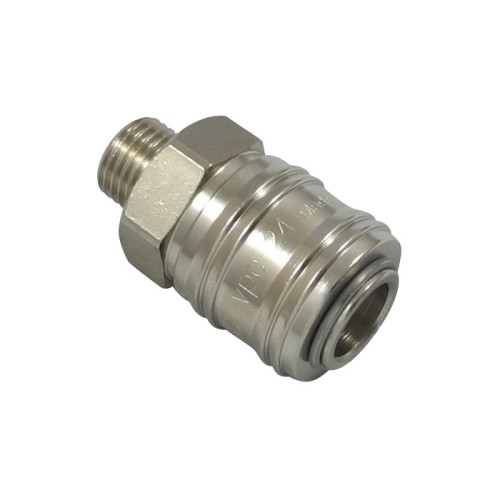

Cupla rapida mama, seria 24, filet exterior
Tip produs: 24KAAW
Profil ISO 6150 B
Seria 23, Diametru nominal DN 5,5
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida mama, seria 24, alama, cu filet exterior si supapa pentru inchidere simpla.

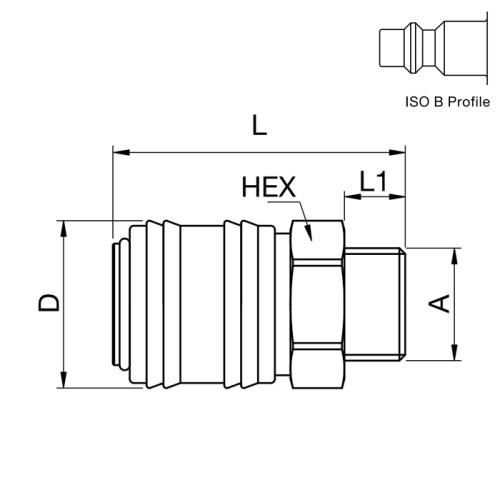

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | Varianta | ØD mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 24KAAW13MPX | G1/4 | 22 | 43 | 9 | alama | 25 |
|
Adauga | |
| 24KAAW13MPN | 9101 24 13 | G1/4 | 22 | 43 | 9 | alama nichelata | 25 |
|
Adauga |
| 24KAAW17MPX | G3/8 | 22 | 43 | 9 | alama | 25 |
|
Adauga | |
| 24KAAW17MPN | 9101 24 17 | G3/8 | 22 | 43 | 9 | alama nichelata | 25 |
|
Adauga |
| 24KAAW21MPX | G1/2 | 22 | 46 | 12 | alama | 25 |
|
Adauga | |
| 24KAAW21MPN | 9101 24 21 | G1/2 | 22 | 46 | 12 | alama nichelata | 25 |
|
Adauga |
