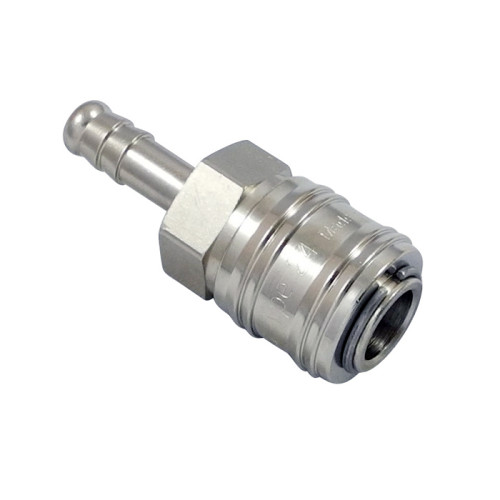

Cupla rapida mama, seria 24, cu stut
Tip produs: 24KATF
Profil ISO 6150 B
Seria 23, Diametru nominal DN 5,5
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida mama, seria 24, alama, cu stut pentru furtun si supapa pentru inchidere simpla.

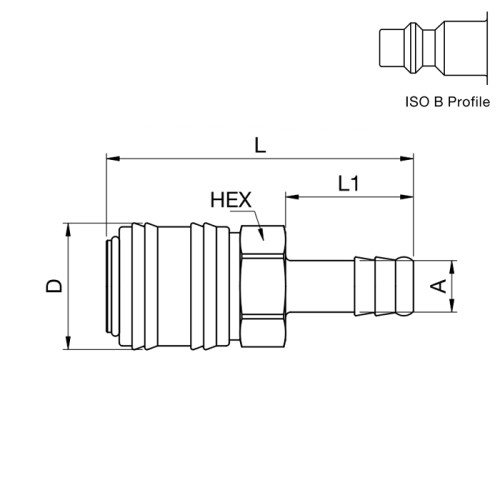

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | Varianta | ØD mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 24KATF06MPX | 6 | 21 | 60 | 25 | alama | 25 |
|
Adauga | |
| 24KATF06MPN | 9123 24 06 | 6 | 21 | 60 | 25 | alama nichelata | 25 |
|
Adauga |
| 24KATF08MPX | 8 | 21 | 60 | 25 | alama | 25 |
|
Adauga | |
| 24KATF08MPN | 9123 24 06 | 8 | 21 | 60 | 25 | alama nichelata | 25 |
|
Adauga |
| 24KATF09MPX | 9 | 21 | 60 | 25 | alama | 25 |
|
Adauga | |
| 24KATF09MPN | 9 | 21 | 60 | 25 | alama nichelata | 25 |
|
Adauga | |
| 24KATF10MPX | 10 | 21 | 60 | 25 | alama | 25 |
|
Adauga | |
| 24KATF10MPN | 9123 24 10 | 10 | 21 | 60 | 25 | alama nichelata | 25 |
|
Adauga |
| 24KATF13MPX | 13 | 21 | 60 | 25 | alama | 25 |
|
Adauga | |
| 24KATF13MPN | 13 | 21 | 60 | 25 | alama nichelata | 25 |
|
Adauga |
