Cupla rapida tata, seria 23, filet exterior
Tip produs: 24-23SFA
Profil ISO 6150 B
Seria 23, Diametru nominal DN 5,5
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C

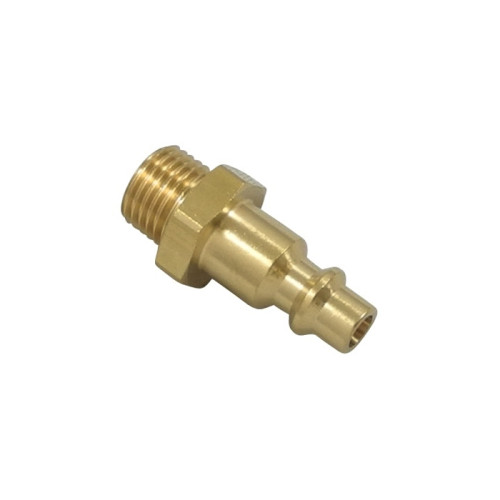

Cupla rapida tata, seria 23, alama sau otel nichelat, cu filet exterior

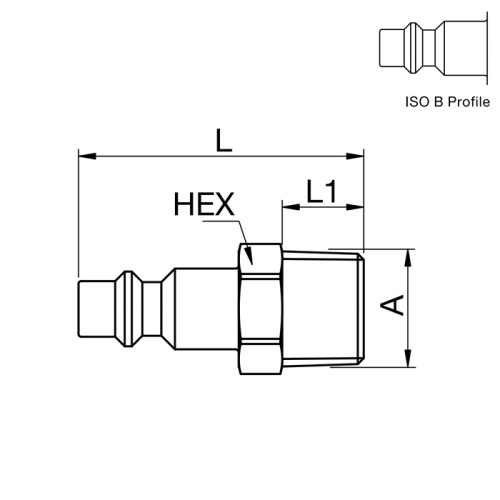

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 23SFAK10SXN | R1/8 | 13 | 39 | 9 | otel nichelat |
|
Adauga | |
| 23SFAW10SXN | 9087 23 10 | G1/8 | 14 | 35 | 7 | otel nichelat |
|
Adauga |
| 23SFAK13SXN | R1/4 | 14 | 42 | 12 | otel nichelat |
|
Adauga | |
| 23SFAW13SXN | 9087 23 13 | G1/4 | 14 | 42 | 12 | otel nichelat |
|
Adauga |
| 23SFAW13MXX | G1/4 | 14 | 42 | 12 | alama |
|
Adauga | |
| 23SFAK17SXN | R3/8 | 17 | 42 | 12 | otel nichelat |
|
Adauga | |
| 23SFAW17MXX | G3/8 | 17 | 42 | 12 | alama |
|
Adauga | |
| 23SFAW17SXN | 9087 23 17 | G3/8 | 17 | 42 | 12 | otel nichelat |
|
Adauga |
| 23SFAK21SXN | R1/2 | 22 | 48 | 17 | otel nichelat |
|
Adauga | |
| 23SFAW21SXN | 9087 23 21 | G1/2 | 22 | 42 | 12 | otel nichelat |
|
Adauga |
