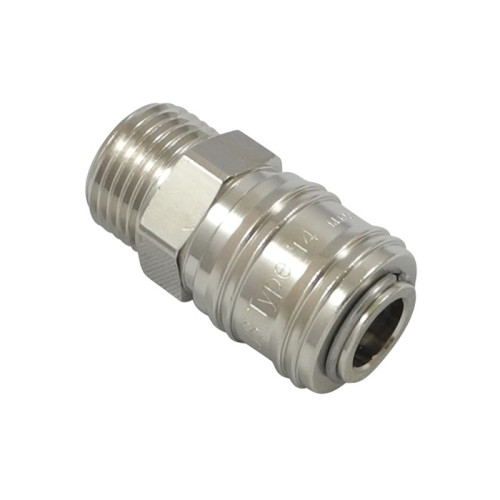

Cupla rapida mama, seria 14, filet exterior

Parker's Quick Coupling Series 14 is a robust brass quick coupling with numerous connection options. The preferred application for this series is the compressed air technology. It's also particularly suited to use with water due to its brass valve.
The coupling system is developed for single-hand operation and the plug design is optimized through greater insert depth.

The right plug for series 14 can be found under series 22.

Markets:
- Machinery Construction
- Automotive

Features/Benefits:
- Single-hand operation for easy and fast connection
- Plug design optimized through greater insert depth

Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors

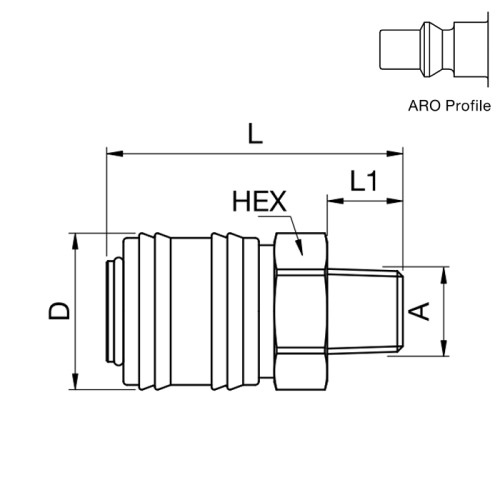

Diameter	5,5 nom
Valve Included	Yes
Version	Single Shut-Off
Length	43 mm
Hex Size	22 mm
Outside Diameter	25 mm
Seal Material	NBR
Minimum Operating Temperature	-20 °C
Maximum Operating Temperature	100 °C
Maximum Operating Pressure	35 bar
Flow Rate	560 L/min

Customer information about test reports and inspection certificates	view
Instructions for use - Standard-Couplings Single Shut-Off, Double Shut-Off, Straight-Through and Dry-break Couplings	view
Instructions for use for explosive areas (ATEX)	view
Safety instructions - Quick Connect Couplings	view
Datasheet Series 14 Single-Shut Off Version made of Brass/Steel	view
Declaration Regarding Regulation (EC) No. 1907/2006 of the European Parliament and the Council Dated 18 December 2006 Concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Published on 30 December 2006 in the Official Journal of the European Union 396/1.	view
Overview of couplings for vacuum applications	view
Statement to EC Machinery Directive 2006/42/EC	view
Leakage rates for low-pressure couplings	view
Declaration of conformity - DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 8 June 2011on the restriction of the use of certain hazardous substances in electrical and electronic equipment	view
Inventor of push-in fittings and market leader in quick couplings, Parker Legris Rectus has a reputed experience in fluid transfer for production automation, transportation, food processing, thermal management and medical applications.	view
Recommended values for the assembly of quick couplings to their connected lines	view
Catalogue Page Parker Rectus Series 14	view

14KAAW13MPX
