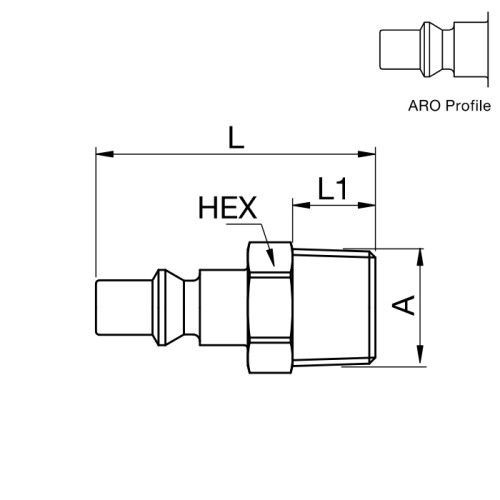

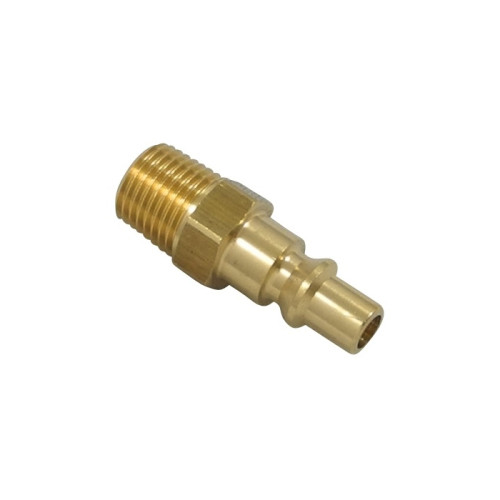

Cupla rapida tata, seria 22, filet exterior

Parker's Premium Quick Coupling Series 22 is a coupling system with ARO profile which is most common in Benelux countries, Switzerland as well as in South Africa. The series 22 is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop. It's especially suited to use with gaseous media in industry. The steel sleeve counters oscillating forces and the high insertion depth is guaranteed by an optimized plug guide.

Markets:
- Machinery Construction

Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Steel sleeve counters oscillating forces
- Single-hand operation for easy and fast connection

Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors

Division	Low Pressure Connectors Europe Division
Diameter	5,5 nom
Valve Included	No
Version	Single Shut-Off
Length	35 mm
Hex Size	12 mm
Outside Diameter	na
Seal Material	na
Minimum Operating Temperature	-20 °C
Maximum Operating Temperature	100 °C
Maximum Operating Pressure	35 bar
Flow Rate	800 L/min

Customer information about test reports and inspection certificates	view
Instructions for use - Standard-Couplings Single Shut-Off, Double Shut-Off, Straight-Through and Dry-break Couplings	view
Instructions for use for explosive areas (ATEX)	view
Safety instructions - Quick Connect Couplings	view
Dust Caps - Correlation to the series	view
Declaration Regarding Regulation (EC) No. 1907/2006 of the European Parliament and the Council Dated 18 December 2006 Concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Published on 30 December 2006 in the Official Journal of the European Union 396/1.	view
Catalogue Page Parker Rectus Series 22	view
Statement to EC Machinery Directive 2006/42/EC	view
Leakage rates for low-pressure couplings	view
Inventor of push-in fittings and market leader in quick couplings, Parker Legris Rectus has a reputed experience in fluid transfer for production automation, transportation, food processing, thermal management and medical applications.	view
Recommended values for the assembly of quick couplings to their connected lines	view
Datasheet Series 22 Single-Shut-Off Version made of Brass/Steel	view
Declaration of conformity - DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 8 June 2011on the restriction of the use of certain hazardous substances in electrical and electronic equipment	view

22SFAK10SXN
