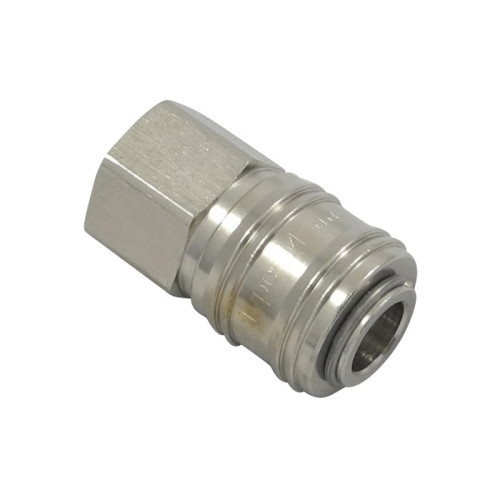

Cupla rapida mama, seria 14, filet interior
Tip produs: 14KAIW
Profil ARO
Seria 14, Diametru nominal DN 5,5
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida mama, seria 14, alama sau alama nichelata, cu filet interior si supapa pentru inchidere simpla.
Cuple tata compatibile: seria 22

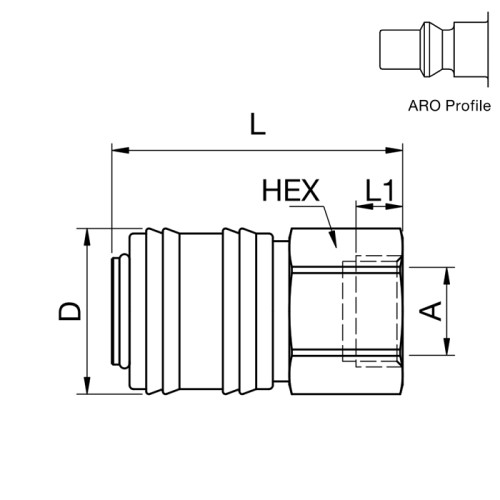

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 14KAIW13MPX | G1/4 | 22 | 43 | 9 | 25 | alama |
|
Adauga | |
| 14KAIW13MPN | 9114 14 13 | G1/4 | 22 | 43 | 9 | 25 | alama nichelata |
|
Adauga |
| 14KAIW17MPX | G3/8 | 22 | 43 | 9 | 25 | alama |
|
Adauga | |
| 14KAIW17MPN | 9114 14 17 | G3/8 | 22 | 43 | 9 | 25 | alama nichelata |
|
Adauga |
| 14KAIW21MPX | G1/2 | 24 | 46 | 12 | 25 | alama |
|
Adauga | |
| 14KAIW21MPN | 9114 14 21 | G1/2 | 24 | 46 | 12 | 25 | alama nichelata |
|
Adauga |
