Cupla rapida mama, filet exterior
Tip produs: 9101
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +100⁰C
*** Codurile LEGRIS au fost inlocuite cu coduri RECTUS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : +100 ⁰C
- Corp : alama nichelata
- Garnituri : NBR (cauciuc)
- Arc : otel inox

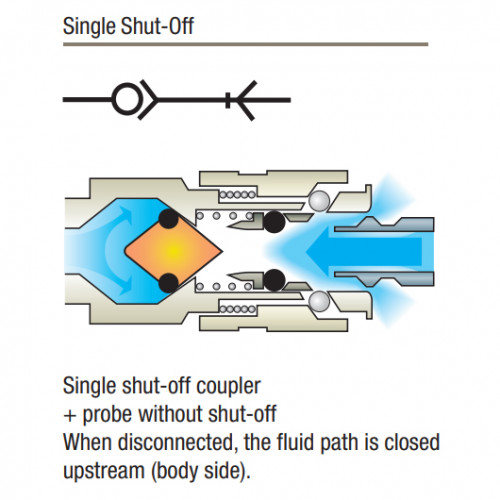

- Material valva shut-off : alama
| Cod LEGRIS | Cod RECTUS |
| 9101 14 13 | 14KAAW13MPN |
| 9101 14 17 | 14KAAW17MPN |
| 9101 14 21 | 14KAAW21MPN |
| 9101 18 13 | 18KAAW13MPN |
| 9101 18 17 | 18KAAW17MPN |
| 9101 18 21 | 18KAAW21MPN |
| 9101 23 13 | 23KAAW13MPN |
| 9101 23 17 | 23KAAW17MPN |
| 9101 23 21 | 23KAAW21MPN |
| 9101 24 13 | 24KAAW13MPN |
| 9101 24 17 | 24KAAW17MPN |
| 9101 24 21 | 24KAAW21MPN |
| 9101 26 10 | 26KAAW10MPN |
| 9101 26 13 | 26KAAW13MPN |
| 9101 26 17 | 26KAAW17MPN |
| 9101 26 21 | 26KAAW21MPN |
| 9101 30 13 | 30KAAW13SPN |
| 9101 30 17 | 30KAAW17SPN |
| 9101 30 21 | 30KAAW21SPN |

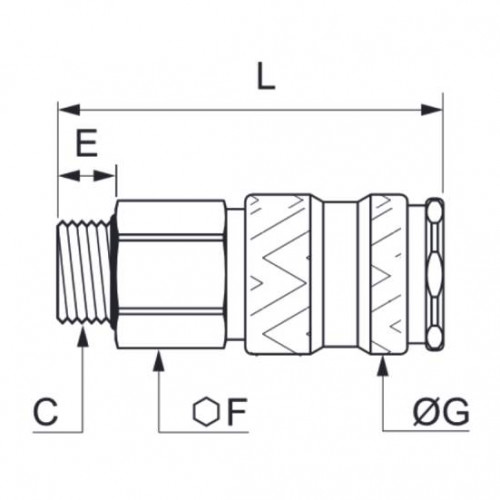

| Cod | Cod Rectus | DN mm | C | Debit l/min | F mm | E mm | ØG mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|
| 9101 26 10 | 26KAAW10MPN | 7,2 | G1/8 | 1000 | 22 | 9 | 27 | 43 |
|
Adauga |
| 9101 26 13 | 26KAAW13MPN | 7,2 | G1/4 | 1000 | 22 | 9 | 27 | 43 |
|
Adauga |
| 9101 26 17 | 26KAAW17MPN | 7,2 | G3/8 | 1000 | 22 | 9 | 27 | 43 |
|
Adauga |
| 9101 26 21 | 26KAAW21MPN | 7,2 | G1/2 | 1000 | 22 | 12 | 27 | 46 |
|
Adauga |
| 9101 14 13 | 14KAAW13MPN | 5,5 | G1/4 | 560 | 22 | 9 | 27 | 43 |
|
Adauga |
| 9101 14 17 | 14KAAW17MPN | 5,5 | G3/8 | 560 | 22 | 9 | 27 | 43 |
|
Adauga |
| 9101 14 13 | 14KAAW21MPN | 5,5 | G1/2 | 560 | 24 | 12 | 27 | 46 |
|
Adauga |
| 9101 24 13 | 24KAAW13MPN | 5,5 | G1/4 | 550 | 22 | 9 | 27 | 43 |
|
Adauga |
| 9101 24 17 | 24KAAW17MPN | 5,5 | G3/8 | 550 | 22 | 9 | 27 | 43 |
|
Adauga |
| 9101 24 21 | 24KAAW21MPN | 5,5 | G1/2 | 550 | 24 | 12 | 27 | 46 |
|
Adauga |
| 9101 23 13 | 23KAAW13MPN | 5,5 | G1/4 | 900 | 19 | 9 | 23 | 57 |
|
Adauga |
| 9101 23 17 | 23KAAW17MPN | 5,5 | G3/8 | 900 | 19 | 9 | 23 | 57 |
|
Adauga |
| 9101 23 21 | 23KAAW21MPN | 5,5 | G1/2 | 900 | 22 | 12 | 23 | 60 |
|
Adauga |
