Cupla rapida mama, cu stut pentru furtun
Tip produs: 9223
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +100⁰C
*** Codurile cuplelor LEGRIS au fost inlocuite cu coduri RECTUS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : +100 ⁰C
- Corp : alama nichelata
- Garnituri : NBR (cauciuc)
- Arc : otel inox

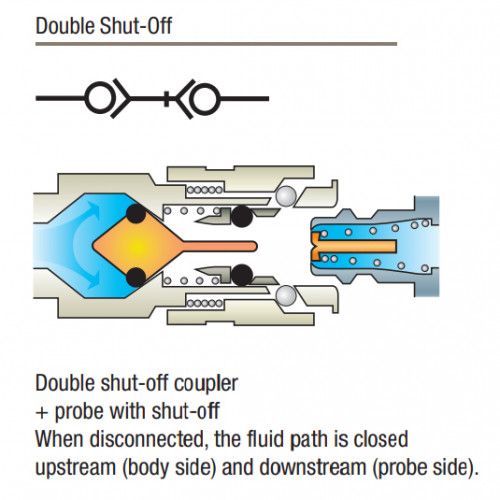

- Material valva shut-off : alama
| Cod LEGRIS | Cod RECTUS |
| 9223 21 04 | 21KBTF04MPN |
| 9223 21 06 | 21KBTF06MPN |
| 9223 21 08 | 21KBTF08MPN |
| 9223 25 06 | 25KBTF06MPN |
| 9223 25 08 | 25KBTF08MPN |
| 9223 25 10 | 25KBTF10MPN |
| 9223 25 13 | 25KBTF13MPN |
| 9223 27 08 | 1700KBTF08BPN |
| 9223 27 10 | 1700KBTF10BPN |
| 9223 27 13 | 1700KBTF13BPN |
| 9223 27 19 | 1700KBTF19BPN |

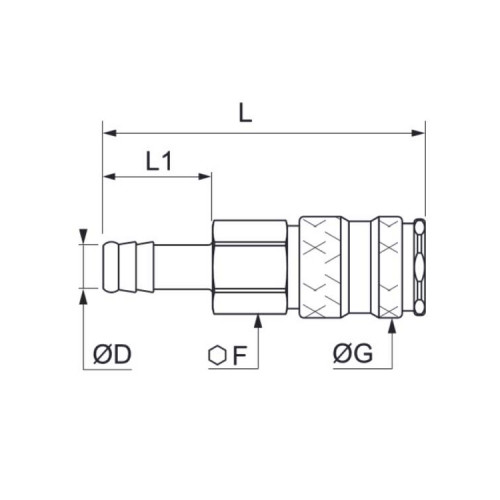

| Cod | Cod Rectus | DN mm | Debit l/min | ØD mm | F mm | ØG mm | L1 mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|
| 9223 21 04 | 21KBTF04MPN | 5 | 560/310 | 4 | 14 | 16 | 17 | 46 |
|
Adauga |
| 9223 21 08 | 21KBTF08MPN | 5 | 560/310 | 8 | 14 | 16 | 17 | 46 |
|
Adauga |
| 9223 25 06 | 25KBTF06MPN | 7,4 | 1800/710 | 6 | 19 | 23 | 25 | 73 |
|
Adauga |
| 9223 25 08 | 25KBTF08MPN | 7,4 | 1800/710 | 8 | 19 | 23 | 25 | 73 |
|
Adauga |
| 9223 25 10 | 25KBTF10MPN | 7,4 | 1800/710 | 10 | 19 | 23 | 25 | 73 |
|
Adauga |
| 9223 25 13 | 25KBTF13MPN | 7,4 | 1800/710 | 13 | 19 | 23 | 25 | 73 |
|
Adauga |
