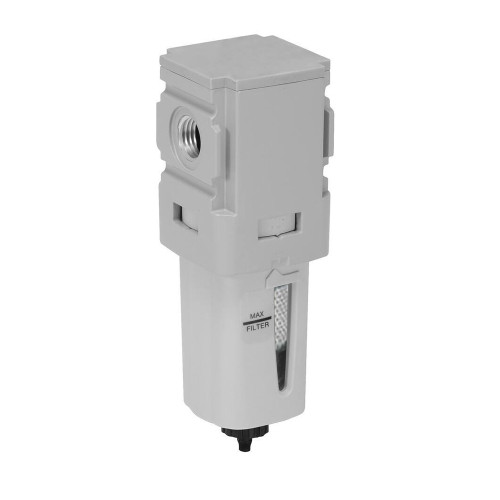

Filtru carbon activ, seria P31 Parker Global

Tip produs: P31FB...A
Parker

Presiune maxima: 10 bar / 17 bar
Temperatura: -10⁰C ... +52⁰C / +65,5⁰C

Filtru adsorbant pentru aer comprimat, cu carbon activ

Element filtrare: carbon activ
Presiune maxima (pahar plastic): 10 bar
Presiune maxima (pahar metal): 17 bar
Temperatura (pahar plastic): -10⁰C ... +52⁰C
Temperatura (pahar metal): -10⁰C ... +65,5⁰C

Informatii de la producator

Global FRL Filters (Particulate/Coalescing/Adsorber)

Parker's Global FRL Filters are designed to remove particulates, liquid aerosols, water, oil, submicron particulate matter or taste and odors from your pneumatic system. These filters are used in industrial applications where particles must be removed.

Global FRL Particulate Filters deliver high moisture removal in a compact package. These filters are used for the removal of solid particle contaminants down to 5 micron and the separation of bulk liquids. This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system.  For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. The various options available (such as auto drain, manual drain, and an assortment of bowl options) make this series easy to design to your application. The Global FRL Particulate Filters are available in (3) sizes: Miniature (P31F), Compact (P32F) and Standard (P33F). The Global FRL Particulate Filters can be mounted using a modular connector to other Global FRL air preparation products. P32 and P33 sizes are interchangeable, where the application calls for an increased flow rate. They are modularly joined together using the same connectors.


Global FRL Coalescing Filters, with available differential pressure gauge, are designed to remove liquid aerosols, water, oil and submicron particulate matter from your pneumatic system. These filters will provide oil free air for several demanding applications. The P32F is specifically designed for the removal of solid particles, water and oil aerosols down to 0.01 micron. The modular style of the P32F allows you to connect any combination of similar air preparation product by using connector brackets. The various options available (such as auto drain, twist drain, DPI gauge and assortment of bowl options) make this series easy to configure for your application.The Global FRL Coalescing Filters also come in (3) sizes: Miniature (P31F), Compact (P32F) and Standard (P33F).


Markets

  •   Machine Tools

  •   Misc. Industrial

  •   Misc. Manufacturing

  •   Air and Gas

  •   Appliances

  •   Factory Automation

  •   Entertainment Automation

  •   Molding

  •   Packaging Machinery

  •   Printing and Marking Equipment

  •   Vehicle Assembly Facilities

  •   Wearing Apparel

  •   Food and Beverage

  •   Misc. Processing


Features & Benefits

  •   Integral 1/2" or 3/4" ports (NPT, BSPP, BSPT)

  •   High efficiency 5 micron element as standard

  •   Excellent water removal efficiency

  •   Robust but lightweight aluminum construction

  •   Positive bayonet latch to ensure correct & safe fitting


Applications

  •   To be used in combination with valves and cylinders

  •   To protect tools and cylinder against corrosion

  •   To reduce friction

  •   At the transfer point from workshop to machine

  •   In combination with tools for assembly and on the shop floor

  •   For all type of machines and tools pneumatic driven

Port Size 1/4"
Bowl Type Poly Bowl, Bowl Guard
Drain Manual Drain
Filter Element Type Adsorber
Indicator Type No DPI
0700P-8 Catalog Air Preparation Products, Miniature / Inline Products: P31 Series, 02 Series, 14 Series, 05 Series, P3A-R Series, R34 Series, R25 Series, R45 Series, 27 Series(Revised 05-14-20) view
Global FRL product tutorial and demo view
0700P-8 Catalog Air Preparation Products, Global FRL Products\r view
Updated Parker Global and P3Y Air Preparation System, Catalog 0760P-1 (Revised 09/28/20). view
Particulate Filters, Installation and Service Manuals (Revised 02-14-18) view
Global Air Preparation Product Poster, 2017 view
Library of available B10 datasheets for Pneumatic Division products view
Air Preparation Systems - FRL, You need clean dry air! view
Pneumatic Calculator, 2018 view
  • Catalog gama Parker Global FRL si P3Y : Deschide
  • Catalog submicrofiltre si filtre cu carbon activ seria P31 Parker Global : Deschide
  • Catalog submicrofiltre si filtre cu carbon activ seria P31 Parker Global 2024 : Deschide
Cod Racord aer Debit dm³/s Grad de filtrare Purjare Pahar Stoc Cerere oferta
P31FB12AGMN G1/4 6 carbon activ manuala plastic
Adauga
P31FB12AMMN G1/4 6 carbon activ manuala plastic
Adauga
