Racord rapid Y, plug-in, egal sau inegal
Tip produs: 3142
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +80⁰C
Vacuum: 755 mmHg
Racord rapid Y plug-in, push-in
- constructie robusta, compacta
- debit de aer maximal (full air flow),
- datare si control de calitate pentru asigurarea calitatii si trasabilitatii
- conformitate RoHS si ISO 14743
- Conformitate : ROHS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Vacuum : 755 mmHg
- Corp : polimer tehnic
- Garnituri : NBR (cauciuc)
- Inel retinere : otel inox
- Catalog racorduri rapide seria LF3000/LF3200 : Deschide

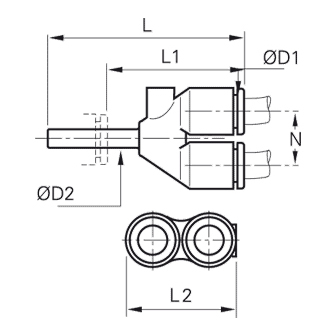

| Cod | ØD1 mm | ØD2 mm | L2 mm | L mm | L1 mm | N mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 3142 04 00 | 4 | 4 | 17,5 | 34 | 21,5 | 9 |
|
Adauga |
| 3142 04 06 | 4 | 6 | 17,5 | 35,5 | 21,5 | 9 |
|
Adauga |
| 3142 06 00 | 6 | 6 | 21,5 | 39,5 | 25,5 | 11 |
|
Adauga |
| 3142 06 08 | 6 | 8 | 22 | 44,5 | 26 | 11 |
|
Adauga |
| 3142 08 00 | 8 | 8 | 28 | 50,5 | 32 | 14,5 |
|
Adauga |
| 3142 08 10 | 8 | 10 | 28 | 53,5 | 32 | 14,5 |
|
Adauga |
| 3142 10 00 | 10 | 10 | 33 | 57,5 | 36 | 17 |
|
Adauga |
| 3142 10 12 | 10 | 12 | 33 | 60 | 35 | 17 |
|
Adauga |
| 3142 12 00 | 12 | 12 | 39 | 66 | 41 | 20 |
|
Adauga |
