Racord rapid drept, trecere panou
Tip produs: 3116
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +80⁰C
Vacuum: 755 mmHg
Racord rapid drept trecere panou, push-in
- constructie robusta, compacta
- debit de aer maximal (full air flow),
- datare si control de calitate pentru asigurarea calitatii si trasabilitatii
- conformitate RoHS si ISO 14743.
- Conformitate : ROHS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Vacuum : 755 mmHg
- Corp : polimer tehnic
- Piulita de blocare : polimer tehnic
- Garnituri : NBR (cauciuc)
- Inel retinere : otel inox
- Catalog racorduri rapide seria LF3000/LF3200 : Deschide

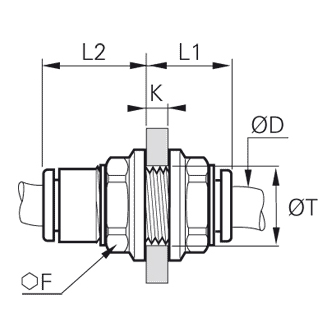

| Cod | ØD mm | F mm | K max mm | L2 mm | L1 mm | ØT min mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 3116 04 00 | 4 | 13 | 5,5 | 10 | 15 | 10,5 |
|
Adauga |
| 3116 06 00 | 6 | 15 | 8 | 11,5 | 19 | 12,5 |
|
Adauga |
| 3116 08 00 | 8 | 18 | 14,5 | 13,5 | 25 | 15,5 |
|
Adauga |
| 3116 10 00 | 10 | 22 | 14,5 | 15,5 | 27,5 | 18,5 |
|
Adauga |
| 3116 12 00 | 12 | 26 | 18,5 | 18 | 33 | 22,5 |
|
Adauga |
| 3116 14 00 | 14 | 29 | 20,5 | 20,5 | 37,5 | 25,5 |
|
Adauga |
| 3116 53 00 | 1/8 inch | 13 | 5,512 | 15,494 | 9,296 | 10,490 |
|
Adauga |
| 3116 56 00 | 1/4 inch | 16 | 8,992 | 20,498 | 9,500 | 13,487 |
|
Adauga |
| 3116 60 00 | 3/8 inch | 22 | 14,478 | 29,997 | 12,979 | 18,491 |
|
Adauga |
| 3116 62 00 | 1/2 inch | 29 | 20,498 | 40,996 | 16,993 | 25,476 |
|
Adauga |
