Racord rapid T, filet exterior BSPT sau NPT
Tip produs: 3103
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +80⁰C
Vacuum: 755 mmHg
Racord rapid T asimetric push-in, filet exterior conic preteflonat
- strangere pe exterior cu cheie fixa
- constructie robusta, compacta
- debit de aer maximal (full air flow),
- datare si control de calitate pentru asigurarea calitatii si trasabilitatii
- conformitate RoHS si ISO 14743
*** pentru racordurile cu tub de 16 mm: presiunea de lucru este de 16 bar la 20°C si 10 bar la 80°C
- Conformitate : ROHS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Vacuum : 755 mmHg
- Corp : polimer tehnic
- Sub-base : alama nichelata
- Garnituri : NBR (cauciuc)
- Inel retinere : otel inox
- Tratament : PTFE (teflon)
- Catalog racorduri rapide seria LF3000/LF3200 : Deschide

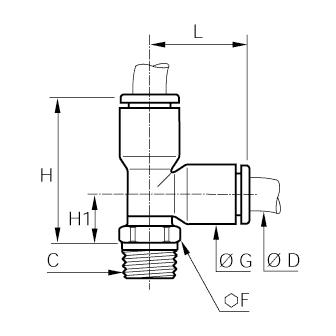

| Cod | ØD mm | C | F mm | ØG mm | H mm | H1 mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 3103 04 10 | 4 | R1/8 | 10 | 8,5 | 23,5 | 9 | 14,5 |
|
Adauga |
| 3103 04 13 | 4 | R1/4 | 14 | 8,5 | 24 | 9,5 | 14,5 |
|
Adauga |
| 3103 06 10 | 6 | R1/8 | 10 | 10,5 | 27,5 | 10 | 17,5 |
|
Adauga |
| 3103 06 13 | 6 | R1/4 | 14 | 10,5 | 28 | 10,5 | 17,5 |
|
Adauga |
| 3103 08 10 | 8 | R1/8 | 10 | 13,5 | 35 | 12 | 23 |
|
Adauga |
| 3103 08 13 | 8 | R1/4 | 14 | 13,5 | 34 | 11 | 23 |
|
Adauga |
| 3103 08 17 | 8 | R3/8 | 17 | 13,5 | 34 | 11 | 23 |
|
Adauga |
| 3103 10 13 | 10 | R1/4 | 15 | 16 | 40,5 | 14 | 26,5 |
|
Adauga |
| 3103 10 17 | 10 | R3/8 | 17 | 16 | 40,5 | 14 | 26,5 |
|
Adauga |
| 3103 10 21 | 10 | R1/2 | 21 | 16 | 40,5 | 14 | 26,5 |
|
Adauga |
| 3103 12 13 | 12 | R1/4 | 15 | 19 | 46,5 | 15,5 | 31 |
|
Adauga |
| 3103 12 17 | 12 | R3/8 | 17 | 19 | 46,5 | 15,5 | 31 |
|
Adauga |
| 3103 12 21 | 12 | R1/2 | 21 | 19 | 46,5 | 15,5 | 31 |
|
Adauga |
| 3103 14 21 | 14 | R1/2 | 24 | 22 | 52,5 | 17,5 | 35,5 |
|
Adauga |
| 3103 16 17 | 16 | R3/8 | 27 | 27 | 78 | 27 | 38,5 |
|
Adauga |
| 3103 16 21 | 16 | R1/2 | 27 | 27 | 78 | 27 | 38,5 |
|
Adauga |
| 3103 53 20 | 1/8 inch | 10-32 | 8 | 8,382 | 23,368 | 8,890 | 14,478 |
|
Adauga |
| 3103 56 10 | 1/4 inch | R1/8 | 10,008 | 10,922 | 29,464 | 11,430 | 18,009 |
|
Adauga |
| 3103 56 11 | 1/4 inch | NPT1/8 | 11 | 10,922 | 29,464 | 11,430 | 17,526 |
|
Adauga |
| 3103 56 14 | 1/4 inch | NPT1/4 | 14 | 10,922 | 28,448 | 10,414 | 17,526 |
|
Adauga |
