Racord rapid L, filet interior BSPP
Tip produs: 3192
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +80⁰C
Vacuum: 755 mmHg
Racord rapid cot push-in, filet interior
- strangere pe exterior cu cheie fixa
- constructie robusta, compacta
- debit de aer maximal (full air flow),
- datare si control de calitate pentru asigurarea calitatii si trasabilitatii
- conformitate RoHS si ISO 14743
- Conformitate : ROHS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Vacuum : 755 mmHg
- Corp : polimer tehnic
- Sub-base : alama nichelata
- Garnituri : NBR (cauciuc)
- Inel retinere : otel inox
- Catalog racorduri rapide seria LF3000/LF3200 : Deschide

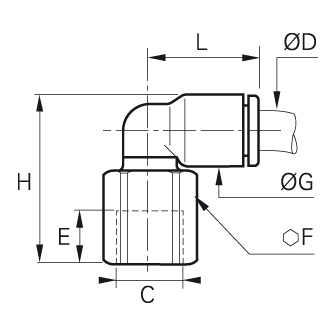

| Cod | ØD mm | C | E mm | F mm | ØG mm | H mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 3192 04 10 | 4 | G1/8 | 8,5 | 13 | 8,5 | 23 | 14 |
|
Adauga |
| 3192 04 13 | 4 | G1/4 | 11,5 | 16 | 8,5 | 27 | 14 |
|
Adauga |
| 3192 06 10 | 6 | G1/8 | 8,5 | 13 | 10,5 | 25 | 16 |
|
Adauga |
| 3192 06 13 | 6 | G1/4 | 11,5 | 16 | 10,5 | 29 | 16 |
|
Adauga |
| 3192 08 10 | 8 | G1/8 | 8,5 | 13 | 13,5 | 28 | 23 |
|
Adauga |
| 3192 08 13 | 8 | G1/4 | 11,5 | 16 | 13,5 | 32 | 23 |
|
Adauga |
| 3192 08 17 | 8 | G3/8 | 12 | 19 | 13,5 | 33 | 23 |
|
Adauga |
| 3192 10 13 | 10 | G1/4 | 11 | 16 | 16 | 34,5 | 26,5 |
|
Adauga |
| 3192 10 17 | 10 | G3/8 | 12 | 19 | 16 | 35 | 26,5 |
|
Adauga |
| 3192 10 21 | 10 | G1/2 | 16 | 24 | 16 | 41 | 26,5 |
|
Adauga |
| 3192 12 13 | 12 | G1/4 | 11 | 16 | 19 | 38 | 30,5 |
|
Adauga |
| 3192 12 17 | 12 | G3/8 | 12 | 19 | 19 | 38,5 | 30,5 |
|
Adauga |
| 3192 12 21 | 12 | G1/2 | 16 | 24 | 19 | 43,5 | 30,5 |
|
Adauga |
