Racord rapid drept prelungitor, Liquifit, egal sau inegal
Tip produs: 6306
Presiune maxima de lucru: 16 bar
Temperatura: -10⁰C ... +95⁰C
Vacuum: 755 mmHg
Racord rapid prelungitor
- constructie robusta, compacta, instalare usoara
- debit maximal (full flow)
- datare si testare pierderi pentru fiecare produs in parte pentru asigurarea calitatii si trasabilitatii
- respecta standardele NSF 51, NSF 61 C HOT, WRAS, FDA, ACS, in concordanta cu reglementarea (EC) 1935/2004, RoHS
- Conformitate : ROHS
- Presiune maxima de lucru : 16 bar
- Temperatura minima de lucru : -10 ⁰C
- Temperatura maxima de lucru : 95 ⁰C
- Vacuum : 755 mmHg
- Corp : polimer biologic
- Garnituri : EPDM (cauciuc)
- Inel retinere : otel inox

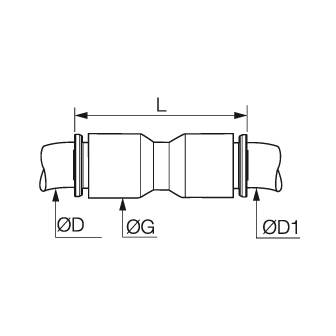

| Cod | ØD mm | ØD1 mm | ØG mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|
| 6306 04 00WP2 | 4 | 4 | 8,5 | 26,5 |
|
Adauga |
| 6306 04 06WP2 | 4 | 6 | 10,5 | 29 |
|
Adauga |
| 6306 04 08WP2 | 4 | 8 | 13,5 | 37 |
|
Adauga |
| 6306 06 00WP2 | 6 | 6 | 10,5 | 30 |
|
Adauga |
| 6306 06 08WP2 | 6 | 8 | 13,5 | 37 |
|
Adauga |
| 6306 06 10WP2 | 6 | 10 | 16 | 42 |
|
Adauga |
| 6306 08 00WP2 | 8 | 8 | 13,5 | 37 |
|
Adauga |
| 6306 08 10WP2 | 8 | 10 | 16 | 42 |
|
Adauga |
| 6306 08 12WP2 | 8 | 12 | 19 | 50 |
|
Adauga |
| 6306 10 00WP2 | 10 | 10 | 16 | 42 |
|
Adauga |
| 6306 10 12WP2 | 10 | 12 | 19 | 50 |
|
Adauga |
| 6306 12 00WP2 | 12 | 12 | 19 | 50,5 |
|
Adauga |
| 6306 16 00 | 16 | 16 | 27 | 60,5 |
|
Adauga |
