Racord L orientabil, filet exterior BSPP
Tip produs: 6599
Presiune maxima de lucru: 16 bar
Temperatura: -10⁰C ... +95⁰C
Vacuum: 755 mmHg
Racord rapid cot, orientabil, filet exterior paralel
- constructie robusta, compacta, instalare usoara
- debit maximal (full flow)
- datare si testare pierderi pentru fiecare produs in parte pentru asigurarea calitatii si trasabilitatii
- respecta standardele KTW, W270, NSF 51, NSF 61 C HOT, WRAS, FDA, ACS, in concordanta cu reglementarea (EC) 1935/2004, RoHS
- Conformitate : ROHS
- Presiune maxima de lucru : 16 bar
- Temperatura minima de lucru : -10 ⁰C
- Temperatura maxima de lucru : 95 ⁰C
- Vacuum : 755 mmHg
- Corp : POM (poliacetal)
- Garnituri : EPDM (cauciuc)
- Inel retinere : otel inox

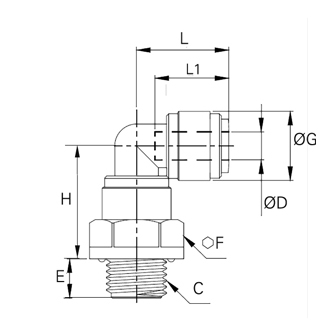

| Cod | ØD mm | C | E mm | F mm | ØG mm | H mm | L mm | L1 mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|
| 6599 06 10WP2 | 6 | G1/8 | 6 | 17 | 15 | 25 | 20 | 16 |
|
Adauga |
| 6599 06 13WP2 | 6 | G1/4 | 8,5 | 18 | 15 | 33 | 20 | 16 |
|
Adauga |
| 6599 08 10WP2 | 8 | G1/8 | 6 | 18 | 18 | 26 | 22 | 17,5 |
|
Adauga |
| 6599 08 13WP2 | 8 | G1/4 | 8,5 | 18 | 18 | 26 | 22 | 17,5 |
|
Adauga |
| 6599 08 17WP2 | 8 | G3/8 | 9 | 22 | 18 | 26 | 22 | 18 |
|
Adauga |
| 6599 10 13WP2 | 10 | G1/4 | 8,5 | 22 | 20 | 30 | 26 | 20 |
|
Adauga |
| 6599 10 17WP2 | 10 | G3/8 | 9 | 22 | 20 | 30 | 26 | 20 |
|
Adauga |
| 6599 10 21WP2 | 10 | G1/2 | 12,5 | 26 | 20 | 30 | 26 | 20 |
|
Adauga |
| 6599 12 17WP2 | 12 | G3/8 | 9 | 26 | 23 | 35 | 32 | 25 |
|
Adauga |
| 6599 12 21WP2 | 12 | G1/2 | 12,5 | 26 | 23 | 35 | 32 | 15 |
|
Adauga |
