Racord adaptor inox, teava-filet exterior BSPT
Tip produs: 1820
Presiune maxima de lucru: 80 bar
Temperatura: -40⁰C ... +250⁰C
Fiting inox pentru adaptare teava-filet exterior conic
- Conformitate : ROHS
- Presiune maxima de lucru : 80 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 250 ⁰C
- Corp : otel inox 316L
- Catalog fitinguri compresie inox : Deschide

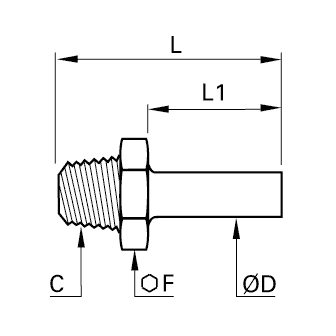

| Cod | ØD mm | C | F mm | L mm | L1 mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| 1820 08 10 | 8 | R1/8 | 12 | 28,5 | 17 |
|
Adauga |
| 1820 08 13 | 8 | R1/4 | 14 | 33 | 17 |
|
Adauga |
| 1820 10 13 | 10 | R1/4 | 14 | 36 | 20 |
|
Adauga |
| 1820 10 17 | 10 | R3/8 | 17 | 36,5 | 20 |
|
Adauga |
| 1820 10 21 | 10 | R1/2 | 22 | 41 | 20 |
|
Adauga |
| 1820 12 13 | 12 | R1/4 | 14 | 36 | 20 |
|
Adauga |
| 1820 12 17 | 12 | R3/8 | 17 | 36,5 | 20 |
|
Adauga |
| 1820 12 21 | 12 | R1/2 | 22 | 41 | 20 |
|
Adauga |
| 1820 16 17 | 16 | R3/8 | 17 | 39,5 | 23 |
|
Adauga |
| 1820 16 21 | 16 | R1/2 | 22 | 44 | 23 |
|
Adauga |
