Racord drept inox, filet exterior NPT
Tip produs: 18A5
Presiune maxima de lucru: 80 bar
Temperatura: -40⁰C ... +250⁰C
Fitting de compresie din inox, drept, cu filet exterior NPT pentru tub sau teava.
- Conformitate : ROHS
- Presiune maxima de lucru : 80 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 250 ⁰C
- Corp : otel inox 316L
- Piulita : otel inox 316L
- Inel strangere : otel inox 316L
- Catalog fitinguri compresie inox : Deschide

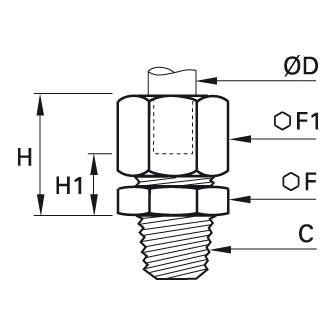

| Cod | ØD mm | C | F mm | F1 mm | H max mm | H1 mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 1805 06 11 | 6 | NPT1/8 | 12 | 13 | 19,5 | 7,5 |
|
Adauga |
| 1805 06 14 | 6 | NPT1/4 | 14 | 13 | 19,5 | 7,5 |
|
Adauga |
| 1805 06 18 | 6 | NPT3/8 | 19 | 13 | 20,5 | 8,5 |
|
Adauga |
| 1805 08 11 | 8 | NPT1/8 | 13 | 14 | 21 | 7 |
|
Adauga |
| 1805 08 14 | 8 | NPT1/4 | 14 | 14 | 21 | 7 |
|
Adauga |
| 1805 10 14 | 10 | NPT1/4 | 17 | 19 | 25,5 | 9 |
|
Adauga |
| 1805 10 18 | 10 | NPT3/8 | 19 | 19 | 25,5 | 9 |
|
Adauga |
| 1805 10 22 | 10 | NPT1/2 | 22 | 19 | 26,5 | 10 |
|
Adauga |
| 1805 12 14 | 12 | NPT1/4 | 19 | 22 | 26 | 9 |
|
Adauga |
| 1805 12 18 | 12 | NPT3/8 | 19 | 22 | 26 | 9 |
|
Adauga |
| 1805 12 22 | 12 | NPT1/2 | 22 | 22 | 27 | 10 |
|
Adauga |
