Racord drept inox, filet exterior BSPT
Tip produs: 1805
Presiune maxima de lucru: 80 bar
Temperatura: -60⁰C ... +250⁰C
Vacuum: 755 mmHg
Fitting de compresie din inox, drept, cu filet conic exterior pentru tub sau teava.
- disponibil pentru tub/teava cu diametru exterior de la 6 mm pana la 16 mm
- Conformitate : ROHS
- Presiune maxima de lucru : 80 bar
- Temperatura minima de lucru : -60 ⁰C
- Temperatura maxima de lucru : 250 ⁰C
- Vacuum : 755 mmHg
- Corp : otel inox 316L
- Piulita : otel inox 316L
- Inel strangere : otel inox 316L
- Catalog fitinguri compresie inox : Deschide

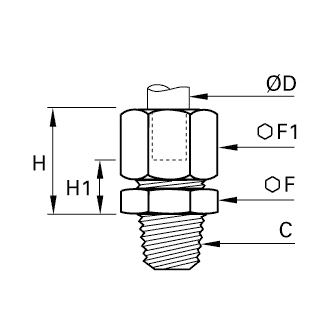

| Cod | ØD mm | C | F mm | F1 mm | H max mm | H1 mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 1805 06 10 | 6 | R1/8 | 12 | 13 | 19,5 | 7,5 |
|
Adauga |
| 1805 06 13 | 6 | R1/4 | 14 | 13 | 19,5 | 7,5 |
|
Adauga |
| 1805 08 10 | 8 | R1/8 | 13 | 14 | 21 | 7 |
|
Adauga |
| 1805 08 13 | 8 | R1/4 | 14 | 14 | 21 | 7 |
|
Adauga |
| 1805 10 13 | 10 | R1/4 | 17 | 19 | 25,5 | 9 |
|
Adauga |
| 1805 10 17 | 10 | R3/8 | 17 | 19 | 25,5 | 9 |
|
Adauga |
| 1805 10 21 | 10 | R1/2 | 22 | 19 | 26,5 | 10 |
|
Adauga |
| 1805 12 13 | 12 | R1/4 | 19 | 22 | 26 | 9 |
|
Adauga |
| 1805 12 17 | 12 | R3/8 | 19 | 22 | 26 | 9 |
|
Adauga |
| 1805 12 21 | 12 | R1/2 | 22 | 22 | 27 | 10 |
|
Adauga |
| 1805 16 17 | 16 | R3/8 | 24 | 27 | 28,5 | 9,5 |
|
Adauga |
| 1805 16 21 | 16 | R1/2 | 24 | 27 | 28,5 | 9,5 |
|
Adauga |
