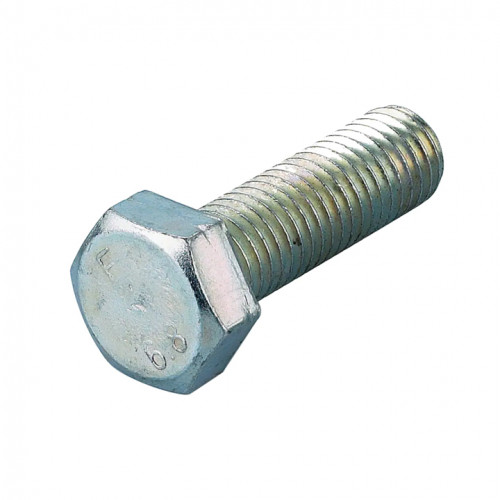

Kituri de suruburi pentru flansa de aluminiu Transair
Kituri de suruburi pentru:
- montare flanse aluminiu
- montare robinet cu bila si flanse de aluminiu
Kituri de suruburi pentru montarea flanselor de aluminiu Transair sau a robinetului cu bila si flanse de aluminiu.
Tabel de selectie garnituri si kituri de suruburi pentru asamblarea flanselor de aluminiu:
| Transair® | ØD/C | DN | Garnitura | Kit de suruburi | Nr kituri | Cuplu max strangere |
| RA30 63 00 | 63 | 65 | EW05 63 00 | EW06 00 03 | 1 kit | 80 Nm |
| RA30 L1 00 | 76 | 80 | EW05 L1 00 | EW06 00 03 | 1 kit | 80 Nm |
| RA33 L1 24 | R3" | 80 | EW05 L1 00 | EW06 00 03 | 1 kit | 80 Nm |
| RA33 L3 24 | R3" | 100 | EW05 L3 00 | EW06 00 03 | 1 kit | 80 Nm |
| RA30 L3 00 | 100 | 100 | EW05 L3 00 | EW06 00 03 | 1 kit | 80 Nm |
| RA31 L8 00 | 168 | 150 | EW05 L8 00 | EW06 00 08 | 2 kituri | 200 Nm |
| RA30 L8 K2 | 168 | 200 | EW05 K2 00 | EW06 00 08 | 3 kituri | 200 Nm |
Kituri de suruburi pentru asamblul flansa aluminiu / robinet / flansa aluminiu:
| Transair® | ØD | DN | Cod Flansa | Kit de suruburi | Nr kituri | Cuplu max strangere |
| VR02 63 00 | 63 | 65 | RA30 63 00 | EW06 00 07 | 1 kit | 80 Nm |
| VR02 L1 00 | 76 | 80 | RA30 L1 00 - RA33 L1 24 | EW06 00 07 | 1 kit | 80 Nm |
| VR02 L3 00 | 100 | 100 | RA30 L3 00 - RA33 L3 24 | EW06 00 07 | 1 kit | 80 Nm |
| VR02 L8 00 | 168 | 150 | RA31 L8 00 | EW06 00 09 | 1 kit | 200 Nm |
| VR01 L1 00 | 76 | 80 | RA30 L1 00 - RA33 L1 24 | EW06 00 17 | 2 kituri | 80 Nm |
| VR01 L3 00 | 100 | 100 | RA30 L3 00 - RA33 L3 24 | EW06 00 02 | 2 kituri | 80 Nm |
| VR01 L8 00 | 168 | 150 | RA31 L8 00 | EW06 00 15 | 2 kituri | 200 Nm |
Informatii de la producator
Transair® Fitting & Sensor Accessories

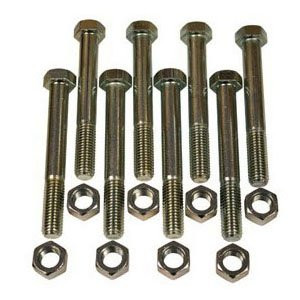

FLANGE BOLT KIT M16 L90MM X8
For proper installation and warranty compliance, Transair fittings, valves, and sensors require the use of genuine Transair accessories. We offer an array of replacement parts and mounting hardware to make repairs and installations hassle free.
ASME 13.1 states that all process piping networks need to be labeled to identify the media being conveyed. Transair offers stickers to denote flow direction, as well as label the media (compressed air & vacuum). We offer stickers for 2” to 8” Transair pipe.
For installation instructions, download our installation manual or watch our installation videos.
Markets:
• Automotive Assembly
• Food & Beverage
• Packaging
• Industrial Plants
• Aerospace
Features & Benefits:
• Quick connection technology
• Modular and reusable
• Faster installation
• Lower installation costs
• Lightweight
Applications:
• Compressed Air
• Vacuum
• Industrial/Inert Gasses (i.e. Argon, Nitrogen, Carbon Dioxide)
• Process Water
• Chemical Transfer
| Assembly Time | 0.15 Hours |
| Brand | Parker |
| Brand | Transair |
| Division | Low Pressure Connectors Europe Division |
| Pipe Outside Diameter | 100.0 mm |
| Pipe Outside Diameter | 2-1/2 inch |
| Pipe Outside Diameter | 3.0 inch |
| Pipe Outside Diameter | 4.0 inch |
| Pipe Outside Diameter | 63.0 mm |
| Pipe Outside Diameter | 76.0 mm |
| Product Style | Bolt Kit |
| Product Type | Compressed Air Piping |
| Quantity per Box | 1.0 KIT: 4 nuts and bolts |
| Weight | 1.820 kg |
| Weight | 4.01 lb |
| 3515 Transair Catalog | view |
| Transair 1/2\ to 1-1/2\ (16.5 to 40 mm) Installation Video | view |
| A comprehensive view of the Transair product line in a reference brochure format. | view |
| This manual covers how to install Transair aluminum piping, stainless steel piping, and 316L drops. | view |
| Transair 2\ to 2-1/2\ (50 to 63 mm) Installation Video | view |
| Transair System Overview | view |
| This video demonstrates the assembly procedures for the 3\ to 6\ (76 to 168 mm) pipe. | view |
| Watch Transair aluminum piping go pipe-to-pipe against the traditional compressed air pipes Copper and Carbon Steel. | view |
| This website lists the CRN numbers for Transair products by Canadian province. | view |
| Transair Drop Bracket Installation Video | view |
| Visit the Transair website for the latest product info, design tools, and videos realted to Transair piping systems. | view |
| This document provides an overview of the regulations Transair aluminum and stainless steel products meet. Copies of the individual certifications are available upon request. | view |
