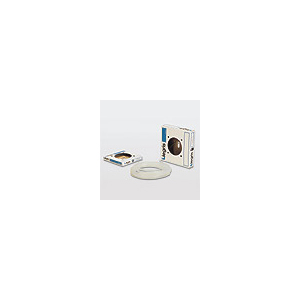

Furtun teflon FEP, rola 5m
Tub teflon fluoropolimer FEP 140 - industria alimentara
Presiune maxima de lucru: 28 bar
Temperatura: -40⁰C ... 150⁰C
Tubul de teflon fluoropolimer FEP 140 pentru industria alimentara, ofera o rezistenta excelenta la medii agresive de spalare si la temperaturi ridicate de pana la + 140⁰C.
Rezistenta foarte buna la substante chimice
Recomandat pentru industria alimentara
- Conformitate : ROHS
- Presiune maxima de lucru : 28 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 150 ⁰C
- Lungime : 5 m
- Materialul tubului : FEP (teflon)
Informatii de la producator
Fluoropolymer (FEP) Tubing
FEP (fluorinated ethylene propylene) tubing is a robust engineering fluoropolymer which provides excellent fluid visibility and is perfect for flow control monitoring.
FEP (fluorinated ethylene propylene) tubing is a robust engineering fluoropolymer which provides excellent fluid visibility and is perfect for flow control monitoring.
Features/Benefits:
- Flow Control Transparent
• Flexible and non-flammable material
• Resistant to nearly all chemicals and solvents
- Tried-&-Tested Properties
• Excellent transmission of UV light
• Low friction coefficient
• Food-grade material
• Low permeability
• Easily weldable
• Silicone-free
Markets:
• Food and Beverage
• Lab / Diagnostic
• Industrial Chemical Processing
• Oil and Gas
Applications:
• Aggressive Fluids Conveying
• Applications Requiring High Temperature
• Fire Hazard Zones
• Applications Subjected to Intensive Cleaning
• Thermal Management
Technologies:
• Fluoropolymer Tubing
• FEP Tubing
• Fluorinated Ethylene Propylene
• Fluorinated Ethylene Propylene Tubing
• Industrial Tubing
Technical Characteristics:
• Fluids: Industrial fluids
• Materials: Fluorinated ethylene propylene (pure)
• Pressure: 0 to 28 bar
• Temperature: -40°C to +150°C
Regulations:
Food
• FDA: 21 CFR 177.1550
• RG: 1935/2004
Industrial
• UL94 V-0 (Fire resistance)
• DI: 2002/95/EC (RoHS), 2011/65/EC
• DI: 97/23/EC (PED)
• RG: 1907/2006 (REACH)
Product Types:
• Fluoropolymer (FEP) Tubing
| Maximum Operating Pressure | 28 barg |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | 150 °C |
| Weight | 0.168 kg/package |
| Number of Tubes | 1 |
| Application | Chemicals |
| Application | Food Processing |
| Application | Gas Sampling |
| Application | Instrumentation |
| Application | Laboratory |
| Application | Thermal Cycling |
| Application | UV |
| Media | Industrial Fluids |
| Specifications Met | FDA 21 CFR 177.1550 |
| Specifications Met | REACH 1907/2006 (Industrial) |
| Specifications Met | UL 94 V-0 (Fire Resistance, Industrial) |
| Specifications Met | PED 97/23/EC (Industrial) |
| Specifications Met | RG: 1935/2004 |
| Specifications Met | RoHS 2002/95/EC, 2011/65/EC (Industrial) |
| Declaration Regarding Regulation (EC) No. 1907/2006 of the European Parliament and the Council Dated 18 December 2006 Concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Published on 30 December 2006 in the Official Journal of the European Union 396/1. | view |
| Packaging For Technical Tubing And Hose | view |
| Certificate of conformity - European and US foodstuff contact regulations. | view |
| Tubing Part Number Identification\r | view |
| Technical Tubing And Hose | view |
| Interactive Medical Device Manufacturing Product Selector Infographic | view |
| Certificate of conformity - Mineral Conflict Statement_connectic. | view |
| Fluid Handling Solutions - push-in fittings, quick couplings and piping networks - for Tempering & Cooling. | view |
| LPCE Webinar Thermal Management | view |
| Inventor of push-in fittings and market leader in quick couplings, Parker Legris Rectus has a reputed experience in fluid transfer for production automation, transportation, food processing, thermal management and medical applications. | view |
| Discover with this video the Parker LPCE quick connection solutions for Thermal Management in electronic applications.\rThis video shows how rigid piping, quick coupling and push-in fittings meet the requirements of liquid cooling circuits in electronic applications, such as Data Centres, Supercomputers, Electronic devices and Semiconductor production\r | view |
| Certificat de conformité - RoHS LPCE : déclaration de conformité selon la directive VLE 2011/65/CE sur les substances dangereuses. | view |
| Discover with this video the Parker LPCE quick connection solutions for liquid cooling circuit required in electrical devices. This video shows how rigid piping, quick coupling and push-in fittings can meet the requirements of thermal management in the power generation applications, such as Lithium-ion (Li-ion) batteries, Energy Storage Systems (ESS), Inverters, Rectifiers, Converters, Power Conversion Systems (PCS), Medium Voltage Drives and Variable Frequency Drives. | view |
| Fluoropolymer Tubing FEP Datasheet | view |
| Cod | D int mm | D ext mm | r mm | Culoare | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|
| 1005T04 00 25 | 2,5 | 4 | 40 | semi-transparent (natural) |
|
Adauga |
| 1005T06 00 | 4 | 6 | 50 | semi-transparent (natural) |
|
Adauga |
| 1005T08 00 | 6 | 8 | 70 | semi-transparent (natural) |
|
Adauga |
| 1005T10 00 | 8 | 10 | 120 | semi-transparent (natural) |
|
Adauga |
| 1005T12 00 | 10 | 12 | 180 | semi-transparent (natural) |
|
Adauga |
