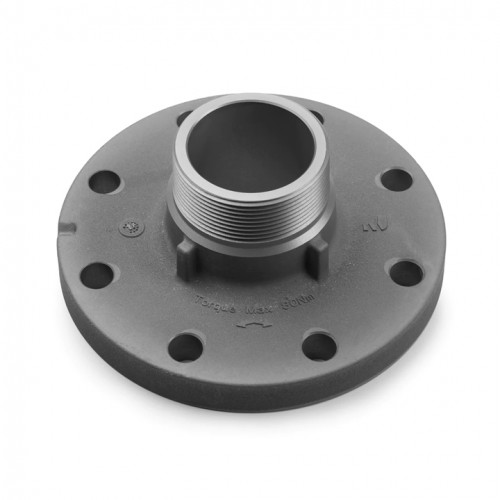

Flansa Transair cu filet, EN-ISO din aluminiu
Tip produs: RA33
Presiune maxima de lucru: 16 bar / 13 bar / 7 bar
Temperatura: -20⁰C ... +45⁰C / +60⁰C / +85⁰C
Vacuum: 755 mmHg

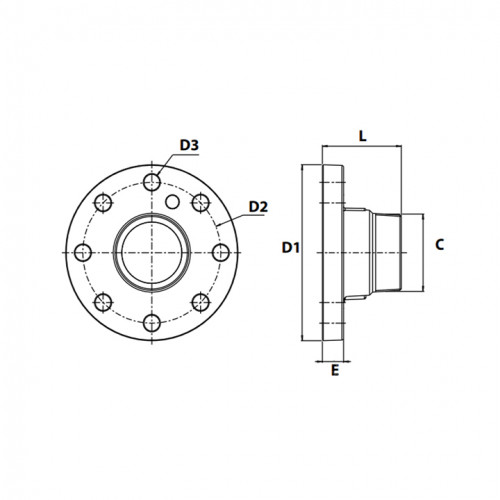

Flansa plata cu filet exterior R3"
Se utilizeaza impreuna cu garnitura tip EW05 si setul de suruburi de prindere EW06
Tabel de selectie garnituri si kituri de suruburi pentru asamblarea flansei:
| Transair® | Ø D/C | DN | Garnitura | Kit de suruburi | Nr kituri | Cuplu max strangere |
| RA30 63 00 | 63 | 65 | EW05 63 00 | EW06 00 03 | 1 kit | 80 Nm |
| RA30 L1 00 | 76 | 80 | EW05 L1 00 | EW06 00 03 | 1 kit | 80 Nm |
| RA33 L1 24 | R3" | 80 | EW05 L1 00 | EW06 00 03 | 1 kit | 80 Nm |
| RA33 L3 24 | R3" | 100 | EW05 L3 00 | EW06 00 03 | 1 kit | 80 Nm |
| RA30 L3 00 | 100 | 100 | EW05 L3 00 | EW06 00 03 | 1 kit | 80 Nm |
| RA31 L8 00 | 168 | 150 | EW05 L8 00 | EW06 00 08 | 2 kituri | 200 Nm |
| RA30 L8 K2 | 168 | 200 | EW05 K2 00 | EW06 00 08 | 3 kituri | 200 Nm |
- Fisier : Deschide
