Flansa cu articulatie
Tip produs: MP4
- accesoriu de prindere cilindru pneumatic standard ISO 15552
- pentru cilindri cu diametru piston : Ø32 mm ... Ø125 mm

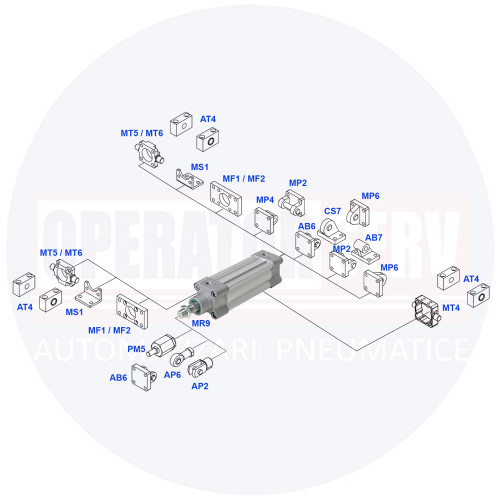

Flansa tip MP4 cu articulatie pentru montaj capac spate cilindriu pneumatic ISO 15552, seria P1F
Se utilizeaza in combinatie cu flansa cu bolt tip MP2
Informatii de la producator
Loading product details...

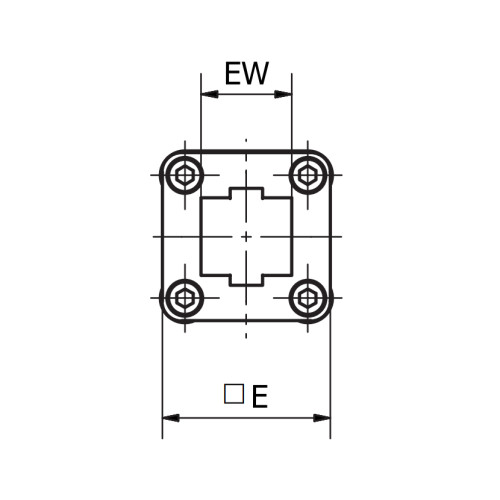

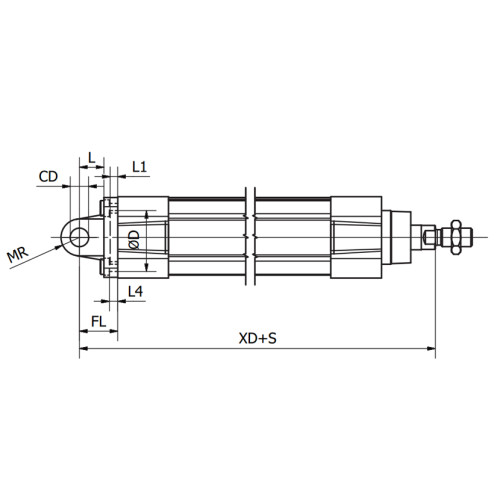

| Cod | Diametru piston mm | ØCD mm | D mm | E mm | EW mm | FL mm | L mm | L1 mm | L4 mm | MR mm | TG mm | XD mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P1C-4KMEB | Ø32 | 10 | 30 | 47 | 26 | 22 | 12 | 6,5 | 6 | 10,5 | 32,5 | 142 |
|
Adauga |
| P1C-4LMEB | Ø40 | 12 | 35 | 52 | 28 | 25 | 16 | 5 | 5,5 | 12 | 38 | 160 |
|
Adauga |
| P1C-4MMEB | Ø50 | 12 | 40 | 65 | 32 | 27 | 16 | 5 | 6,5 | 12 | 46,5 | 170 |
|
Adauga |
| P1C-4NMEB | Ø63 | 16 | 45 | 78 | 40 | 32 | 21 | 5 | 6,5 | 16 | 56,5 | 190 |
|
Adauga |
| P1C-4PMEB | Ø80 | 16 | 45 | 95 | 50 | 36 | 22 | 5 | 10 | 16 | 72 | 210 |
|
Adauga |
| P1C-4QMEB | Ø100 | 20 | 55 | 115 | 60 | 41 | 27 | 5 | 10 | 20 | 89 | 230 |
|
Adauga |
| P1C-4RMEB | Ø125 | 25 | 60 | 140 | 70 | 50 | 30 | 7 | 10 | 25 | 110 | 275 |
|
Adauga |
