Cupla rapida tata, seria 86/87/88, cu filet exterior
Tip produs: 86/87/88SFA

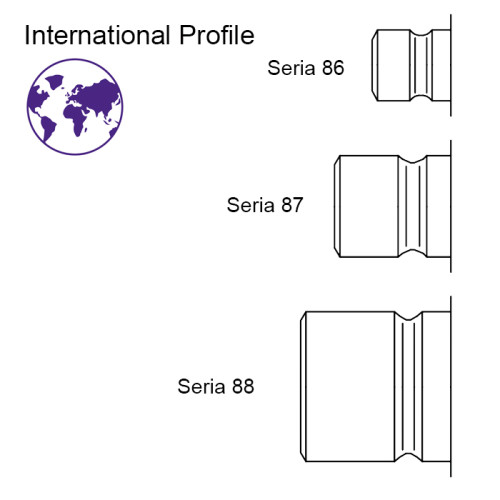

Profil International
Seria 86/87/88, Diametru nominal DN 6/9/13
straight-through
Presiune maxima de lucru: 15 bar
Temperatura: -15⁰C ... +200⁰C
Cupla rapida tata, seria 86/87/88, alama, cu filet exterior, fara supapa de inchidere - cu trecere libera a fluidului (full flow)

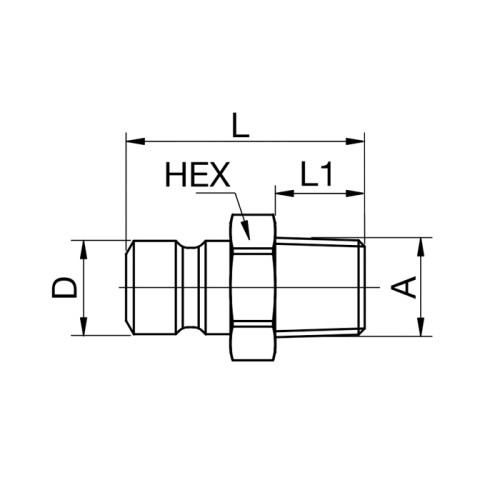

| Cod | DN mm | Seria | A | HEX mm | L mm | L1 mm | ØD mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 86SFAM10MXX | 6 | 86 | M10x1 | 13 | 23 | 8 | 9,5 |
|
Adauga |
| 86SFAK10MXX | 6 | 86 | R1/8 | 13 | 24 | 9 | 9,5 |
|
Adauga |
| 86SFAK13MXX | 6 | 86 | R1/4 | 16 | 29 | 12 | 9,5 |
|
Adauga |
| 86SFAK17MXX | 6 | 86 | R3/8 | 19 | 30 | 12 | 9,5 |
|
Adauga |
| 87SFAK13MXX | 9 | 87 | R1/4 | 16 | 34 | 12 | 13,5 |
|
Adauga |
| 87SFAK17MXX | 9 | 87 | R3/8 | 19 | 34 | 12 | 13,5 |
|
Adauga |
| 87SFAK21MXX | 9 | 87 | R1/2 | 24 | 39 | 17 | 13,5 |
|
Adauga |
| 88SFAK21MXX | 13 | 88 | R1/2 | 22 | 44 | 17 | 20 |
|
Adauga |
| 88SFAK26MXX | 13 | 88 | R3/4 | 29 | 45 | 19 | 20 |
|
Adauga |
