Cupla rapida mama, seria 86/87/88, cu filet exterior
Tip produs: 86/87/88KFAW

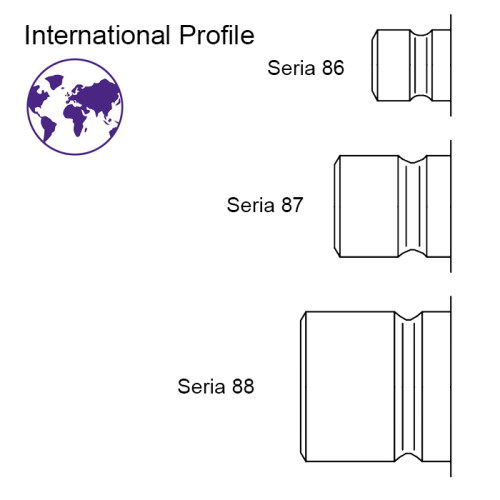

Profil International
Seria 86/87/88, Diametru nominal DN 6/9/13
straight-through
Presiune maxima de lucru: 15 bar
Temperatura: -15⁰C ... +200⁰C
Cupla rapida mama, seria 86/87/88, alama si garnituri FKM, cu filet exterior, fara supapa de inchidere - cu trecere libera a fluidului (full flow)

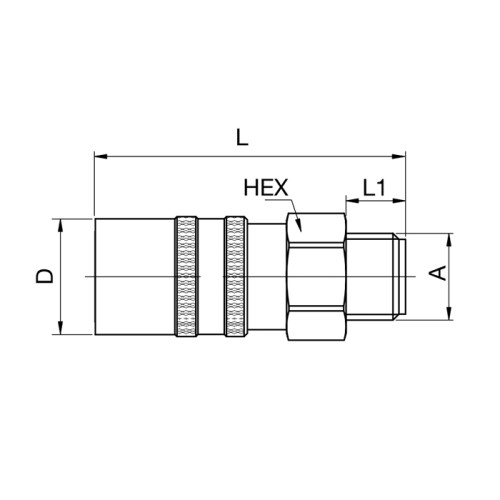

| Cod | DN mm | Seria | A | HEX mm | L mm | L1 mm | ØD mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 86KFAW13MVX | 6 | 86 | G1/4 | 17 | 47 | 9 | 18 |
|
Adauga |
| 86KFAW17MVX | 6 | 86 | G3/8 | 19 | 47 | 9 | 18 |
|
Adauga |
| 87KFAW13MVX | 9 | 87 | G1/4 | 22 | 56,5 | 9 | 24 |
|
Adauga |
| 87KFAW17MVX | 9 | 87 | G3/8 | 22 | 56,5 | 9 | 24 |
|
Adauga |
| 87KFAW21MVX | 9 | 87 | G1/2 | 22 | 59,5 | 12 | 24 |
|
Adauga |
| 88KFAW21MVX | 13 | 88 | G1/2 | 30 | 73 | 12 | 32 |
|
Adauga |
