Cupla rapida tata, seria 23, filet interior

Parker's Premium Quick Coupling Series 23 is a 1/4" industrial coupling according to ISO 6150 B and US MIL-SPE+D13C 4109. It's especially suitable for use with gaseous media in industry.
The coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop. The steel sleeve counters oscillating forces and the high insertion depth is guaranteed by an optimized plug guide.

Markets:
- Machinery Construction
- Automotive
- Aerospace

Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Steel sleeve counters oscillating forces
- Single-hand operation for easy and fast connection
- Coupling system according to ISO 6150 B and US MIL-SPEC 4109

Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors

Assembly Time	0.00 Hours Transair Piping Designer
Division	Low Pressure Connectors Europe Division
Quantity per Box	10
Weight	0.022 kg
Weight	0.048 lb
Diameter	5,5 nom
Valve Included	No
Version	Single Shut-Off

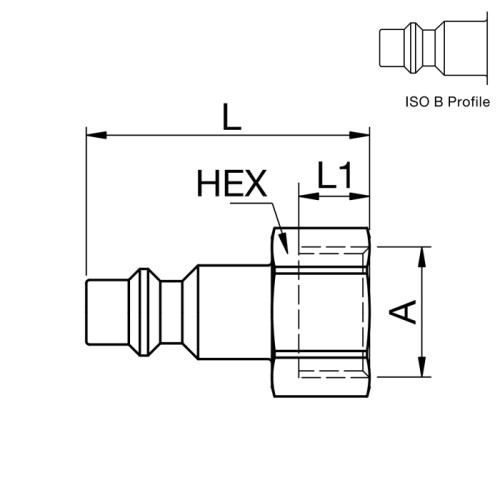

Length	36 mm
Hex Size	17 mm
Outside Diameter	na
Seal Material	na
Minimum Operating Temperature	-20 °C
Maximum Operating Temperature	100 °C
Maximum Operating Pressure	35 bar
Flow Rate	900 L/min

Datasheet Series 23 Single-Shut-Off Version made of Brass/Steel	view
Customer information about test reports and inspection certificates	view
Instructions for use - Standard-Couplings Single Shut-Off, Double Shut-Off, Straight-Through and Dry-break Couplings	view
Safety instructions - Quick Connect Couplings	view
Dust Caps - Correlation to the series	view
Catalogue Page Parker Rectus Series 23	view
Instructions for use for explosive areas (ATEX)	view
Statement to EC Machinery Directive 2006/42/EC	view
Leakage rates for low-pressure couplings	view
Inventor of push-in fittings and market leader in quick couplings, Parker Legris Rectus has a reputed experience in fluid transfer for production automation, transportation, food processing, thermal management and medical applications.	view
Declaration Regarding Regulation (EC) No. 1907/2006 of the European Parliament and the Council Dated 18 December 2006 Concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Published on 30 December 2006 in the Official Journal of the European Union 396/1.	view
Recommended values for the assembly of quick couplings to their connected lines	view
Declaration of conformity - DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 8 June 2011on the restriction of the use of certain hazardous substances in electrical and electronic equipment	view

23SFIW13SXN
