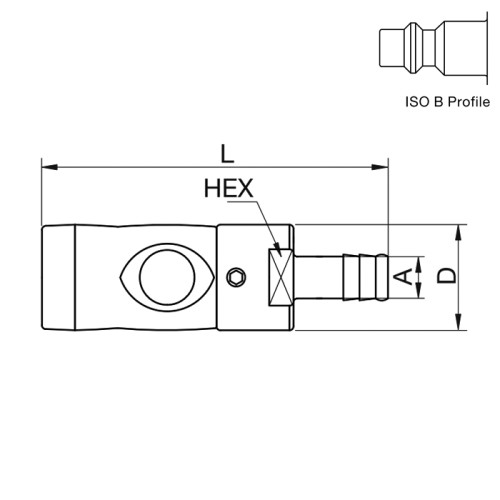

Cupla rapida mama cu buton, seria 24KP, cu stut
Profil ISO 6150 B
Seria 24KP safety, Diametru nominal DN 5,5
self-venting push-button
Presiune maxima de lucru: 12 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida mama cu buton, seria 24KP, aluminiu anodizat si alama nichelata, cu stut pentru furtun, supapa pentru inchidere simpla si sistem de deconectare in siguranta in 2 pasi.
Prima apasare a butonului face depresurizarea circuitului. A doua apasare face posibila deconectarea cuplei tata.
Cuple tata compatibile: seria 23 - otel nichelat
Informatii de la producator
Safety Push Button Quick Coupling, Series KP
Self-venting quick coupling system with push button, nominal diameter from 5.5 to 8 mm for pneumatic applications up to 12 bar. Coupling system with ISO B, ISO C and Euro profile. Made of anodised aluminium/nickel plated brass/NBR seals.
Parker's Safety Quick Coupling Series KP is a safety coupling with pushing button integrating self-venting system according to ISO 6150 B, ISO 6150 C and EURO. The self-venting takes place during disconnection in 2 steps – no risk of pressurized hoses being tossed around. When the pushing buttind is pressed one time, the plug is released yet remains locked in. The coupling valve closes and the air is vented from the air line at the same time. Only then, by pressing the button again, can uncoupling take place safely. The system fulfils the requirements of ISO 4414 – increased safety standards in the work place and make the use easy.
The right plug for self-venting series KP can be found as followings :
- ISO 6150 B; DN 5,5 : Plug series 23
- ISO 6150 B; DN 8 : Plug series 30
- ISO 6150 C; DN 5,5 : Plug series 18
- ISO 6150 B; DN 8 : Plug series 84
- EURO; DN 7,4 : Plug series 25
Markets:
- Machinery Construction
- Automotive
- Industrial process factory
Features/Benefits:
- Safety coupling with self-venting mechanism
- No whiplash effect due to the self-venting which takes place during disconnection
- Easy to connect and discconnet with one hand
Applications:
- Workshops
- Cleaning
- Blowing
- Pneumatics
- Air-Operated Tools
- Ring Main Circuits
- Packaging
| Body Material | Aluminum, Anodised |
| Body Material | Brass, Nickel-plated |
| Maximum Operating Pressure | 12 bar |
| Minimum Operating Temperature | -20 °C |
| Maximum Operating Temperature | 100 °C |
| Quantity per Box | 5 |
| Weight | 0.13 kg |
| Industry Application | Workshops, Cleaning, Blowing, Pneumatics, Air-Operated Tools, Ring Main Circuits, Packaging |
| Media | Compressed Air |
| Specifications Met | DI: 2002/95/EC (RoHS), 2011/65/EC, DI: 1907/2006 (REACH), ISO 4414 Pneumatic Fluid Power: General Rules Relating to Systems |
| O-Ring Material | NBR |
| This anodized amuminium body quick coupling with push-button is part of Parker Rectus safety quick coupling range with self-venting system . Discover all benefits and part number at a glance in this datasheet. | view |
| This anodized amuminium body quick coupling with push-button is part of Parker Rectus safety quick coupling range with self-venting system . Discover all the Parker Rectus range of safety quick coupling in this catalog. | view |
| Inventor of push-in fittings and market leader in quick couplings, Parker Legris Rectus has a reputed experience in fluid transfer for production automation, transportation, food processing, thermal management and medical applications. | view |
| 24KPTF06APX | Part Solutions |
