Cupla rapida tata, seria 21, filet exterior
Tip produs: 21SBA
Profil standard European
Seria 21, Diametru nominal DN 5
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C

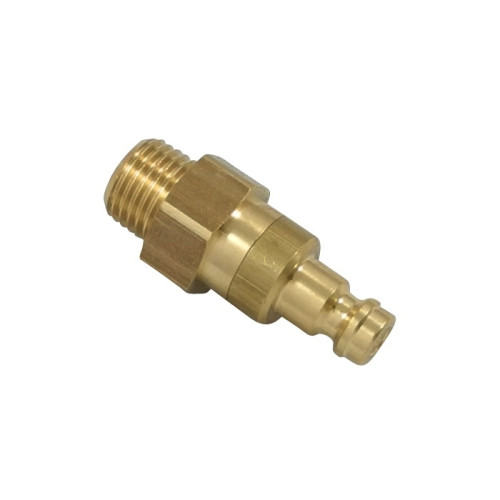

Cupla rapida tata, seria 21, alama sau alama nichelata, cu filet exterior si supapa pentru inchidere dubla

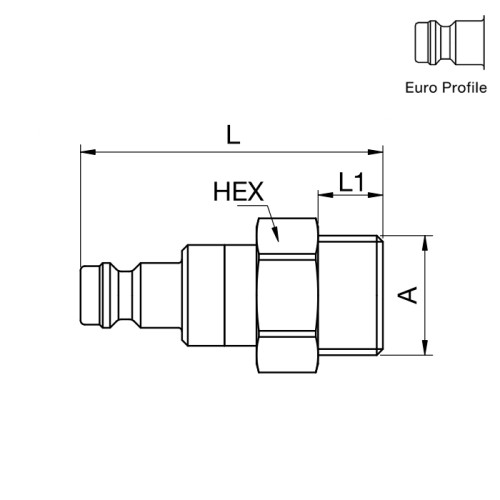

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 21SBAW10MPX | G1/8 | 14 | 40 | 7 | alama |
|
Adauga | |
| 21SBAW10MPN | 9287 21 10 | G1/8 | 14 | 40 | 7 | alama nichelata |
|
Adauga |
| 21SBAW13MPX | G1/4 | 17 | 42 | 9 | alama |
|
Adauga | |
| 21SBAW13MPN | 9287 21 13 | G1/4 | 17 | 42 | 9 | alama nichelata |
|
Adauga |
| 21SBAW17MPX | G3/8 | 19 | 42 | 9 | alama |
|
Adauga | |
| 21SBAW17MPN | G3/8 | 19 | 42 | 9 | alama nichelata |
|
Adauga | |
| 21SBAD10MPX | M10x1 | 14 | 41 | 8 | alama |
|
Adauga | |
| 21SBAD10MPN | M10x1 | 14 | 41 | 8 | alama nichelata |
|
Adauga | |
| 21SBAD12MPX | M12x1.5 | 17 | 43 | 10 | alama |
|
Adauga | |
| 21SBAD12MPN | M12x1.5 | 17 | 43 | 10 | alama nichelata |
|
Adauga | |
| 21SBAD14MPX | M14x1.5 | 17 | 43 | 10 | alama |
|
Adauga | |
| 21SBAD14MPN | M14x1.5 | 17 | 43 | 10 | alama nichelata |
|
Adauga |
