Cupla rapida tata, seria 200 filet interior

Tip produs: 200SLIW
brand

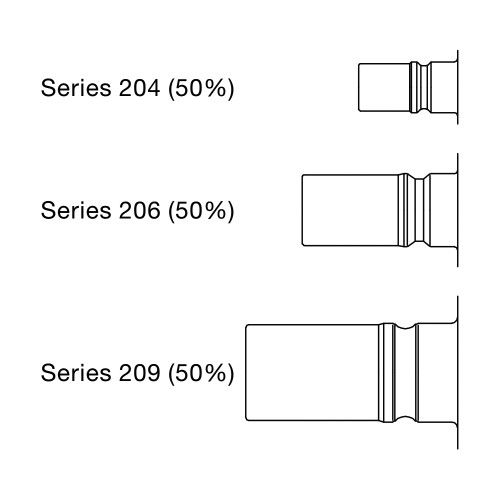

Seria 200, Diametru nominal DN 4/6/9

  dry-break  dry-break

Presiune maxima de lucru: 15 bar
Temperatura: -20⁰C ... +100⁰C (NBR)
Temperatura: -15⁰C ... +200⁰C (FKM)

Cupla rapida tata, seria 200, alama nichelata sau inox, cu filet interior si supapa pentru inchidere dubla, fara pierderi.



  • Catalog cuple rapide Parker-Rectus seria 200 alama nichelata sau inox : Deschide

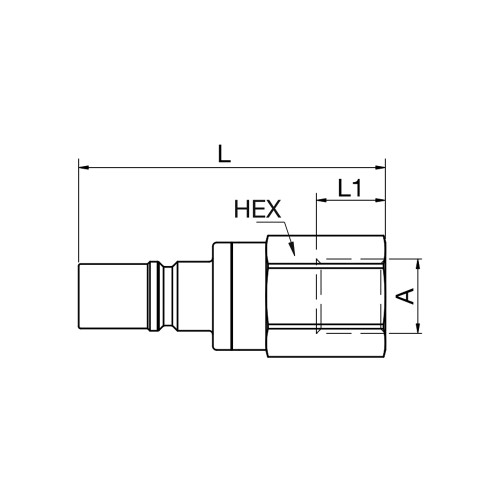

Cod DN mm A HEX mm L mm L1 mm ØD mm Varianta Stoc Cerere oferta
204SLIW10MPN 4 G1/8 14 45 9 19 alama nichelata
Adauga
204SLIW10EVX 4 G1/8 14 45 9 19 AISI 316L
Adauga
204SLIW13MPN 4 G1/4 17 47 9 19 alama nichelata
Adauga
204SLIW13EVX 4 G1/4 17 47 9 19 AISI 316L
Adauga
206SLIW17MPN 6 G3/8 22 69 7 25,5 alama nichelata
Adauga
206SLIW17EVX 6 G3/8 22 69 9 25,5 AISI 316L
Adauga
206SLIW21MPN 6 G1/2 24 72 10 25,5 alama nichelata
Adauga
206SLIW21EVX 6 G1/2 24 72 12 25,5 AISI 316L
Adauga
209SLIW21MPN 9 G1/2 27 92 14 33 alama nichelata
Adauga
209SLIW21EVX 9 G1/2 27 92 16 33 AISI 316L
Adauga
209SLIW26MPN 9 G3/4 32 94 14 33 alama nichelata
Adauga
209SLIW26EVX 9 G3/4 32 94 16 33 AISI 316L
Adauga
