Cupla rapida tata, seria 200 filet exterior
Tip produs: 200SLAW

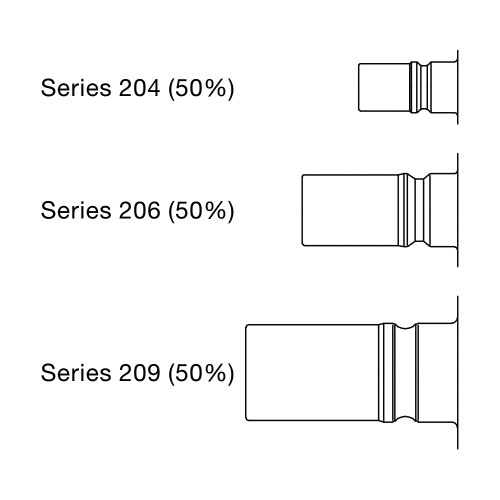

Seria 200, Diametru nominal DN 4/6/9
dry-break
Presiune maxima de lucru: 15 bar
Temperatura: -20⁰C ... +100⁰C (NBR)
Temperatura: -15⁰C ... +200⁰C (FKM)
Cupla rapida tata, seria 200, alama nichelata sau inox, cu filet exterior si supapa pentru inchidere dubla, fara pierderi.
- Catalog cuple rapide Parker-Rectus seria 200 alama nichelata sau inox : Deschide

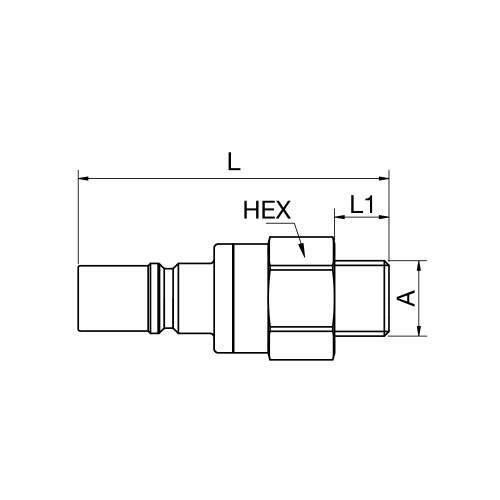

| Cod | DN mm | A | HEX mm | L mm | L1 mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 204SLAW10MPN | 4 | G1/8 | 14 | 40 | 7 | alama nichelata |
|
Adauga |
| 204SLAW10EVX | 4 | G1/8 | 14 | 40 | 7 | AISI 316L |
|
Adauga |
| 204SLAW13MPN | 4 | G1/4 | 17 | 42 | 9 | alama nichelata |
|
Adauga |
| 204SLAW13EVX | 4 | G1/4 | 17 | 42 | 9 | AISI 316L |
|
Adauga |
| 206SLAW17MPN | 6 | G3/8 | 22 | 51 | 9 | alama nichelata |
|
Adauga |
| 206SLAW17EVX | 6 | G3/8 | 22 | 55 | 9 | AISI 316L |
|
Adauga |
| 206SLAW21MPN | 6 | G1/2 | 22 | 54 | 12 | alama nichelata |
|
Adauga |
| 206SLAW21EVX | 6 | G1/2 | 24 | 54 | 12 | AISI 316L |
|
Adauga |
