Cupla rapida mama, seria 200 filet exterior
Tip produs: 200KLAW

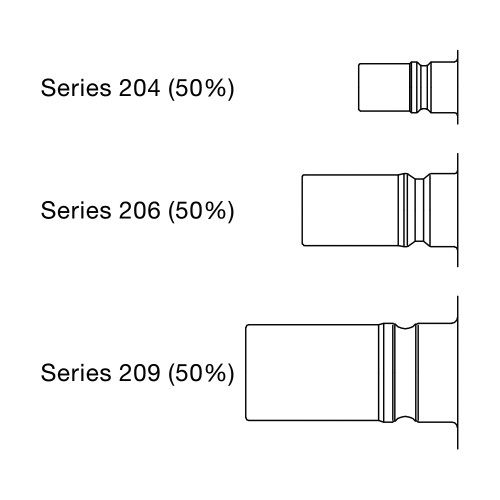

Seria 200, Diametru nominal DN 4/6/9
dry-break
Presiune maxima de lucru: 15 bar
Temperatura: -20⁰C ... +100⁰C (NBR)
Temperatura: -15⁰C ... +200⁰C (FKM)
Cupla rapida mama, seria 200, alama nichelata sau inox, cu filet exterior si supapa pentru inchidere dubla, fara pierderi.
- Catalog cuple rapide Parker-Rectus seria 200 alama nichelata sau inox : Deschide

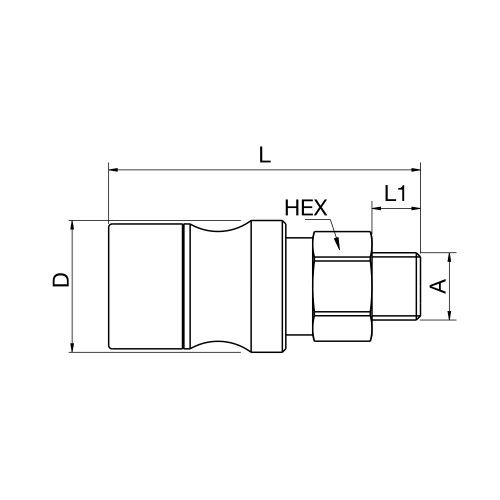

| Cod | DN mm | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 204KLAW10MPN | 4 | G1/8 | 14 | 45 | 7 | 19 | alama nichelata |
|
Adauga |
| 204KLAW10EVX | 4 | G1/8 | 14 | 45 | 7 | 19 | AISI 316L |
|
Adauga |
| 204KLAW13MPN | 4 | G1/4 | 17 | 47 | 9 | 19 | alama nichelata |
|
Adauga |
| 204KLAW13EVX | 4 | G1/4 | 17 | 47 | 9 | 19 | AISI 316L |
|
Adauga |
| 206KLAW17MPN | 6 | G3/8 | 22 | 69 | 9 | 25,5 | alama nichelata |
|
Adauga |
| 206KLAW17EVX | 6 | G3/8 | 22 | 69 | 9 | 25,5 | AISI 316L |
|
Adauga |
| 206KLAW21MPN | 6 | G1/2 | 22 | 72 | 12 | 25,5 | alama nichelata |
|
Adauga |
| 206KLAW21EVX | 6 | G1/2 | 24 | 72 | 12 | 25,5 | AISI 316L |
|
Adauga |
