Cupla rapida mama, seria 21 inox, filet interior
Tip produs: 21KAIW-inox
Profil standard European
Seria 21 inox, Diametru nominal DN 5
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -15⁰C ... +200⁰C

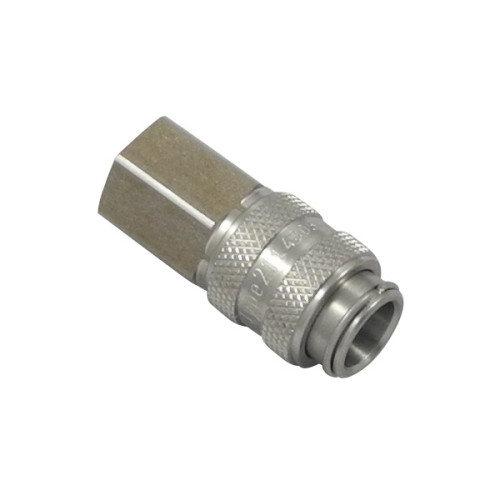

Cupla rapida mama, seria 21 inox, AISI 303 / AISI 316L, cu filet interior si supapa pentru inchidere simpla.

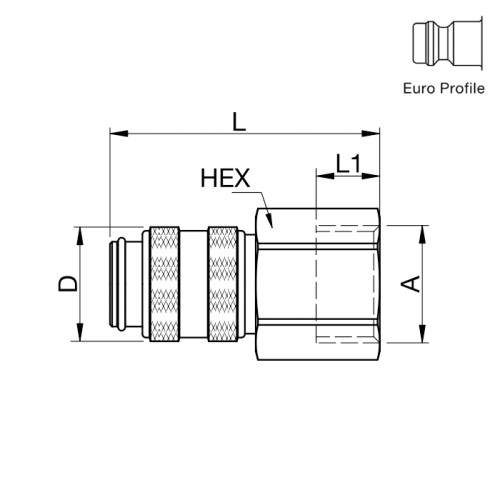

| Cod | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 21KAIW10RVX | G1/8 | 14 | 36 | 9 | 16 | AISI 303 |
|
Adauga |
| 21KAIW10EVX | G1/8 | 14 | 36 | 9 | 16 | AISI 316L |
|
Adauga |
| 21KAIW13RVX | G1/4 | 17 | 38 | 9 | 16 | AISI 303 |
|
Adauga |
| 21KAIW13EVX | G1/4 | 17 | 38 | 9 | 16 | AISI 316L |
|
Adauga |
| 21KAIW17RVX | G3/8 | 19 | 38 | 9 | 16 | AISI 303 |
|
Adauga |
| 21KAIW17EVX | G3/8 | 19 | 38 | 9 | 16 | AISI 316L |
|
Adauga |
