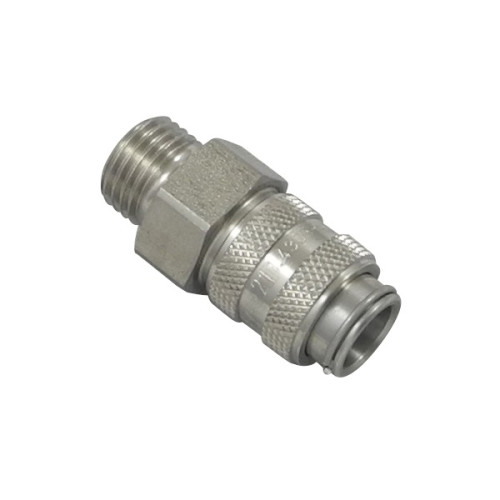

Cupla rapida mama, seria 21 inox, filet exterior
Tip produs: 21KBAW-inox
Profil standard European
Seria 21 inox, Diametru nominal DN 5
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -15⁰C ... +200⁰C
Cupla rapida mama, seria 21 inox, AISI 303 / AISI 316L, cu filet exterior si supapa pentru inchidere dubla.

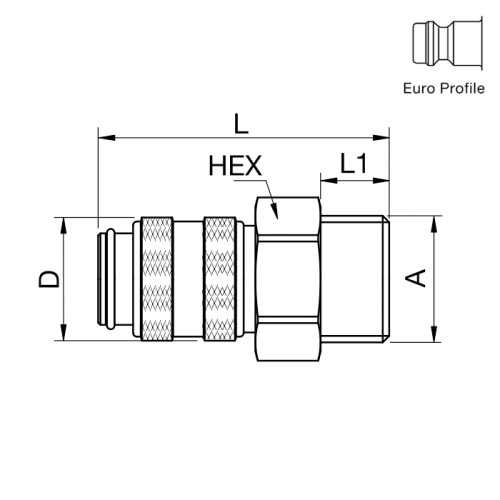

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 21KBAW10RVX | G1/8 | 14 | 36 | 7 | 16 | AISI 303 |
|
Adauga | |
| 21KBAW10EVX | 9201X21 10 | G1/8 | 14 | 36 | 7 | 16 | AISI 316L |
|
Adauga |
| 21KBAW13RVX | G1/4 | 17 | 38 | 9 | 16 | AISI 303 |
|
Adauga | |
| 21KBAW13EVX | 9201X21 13 | G1/4 | 17 | 38 | 9 | 16 | AISI 316L |
|
Adauga |
| 21KBAW17RVX | G3/8 | 19 | 38 | 9 | 16 | AISI 303 |
|
Adauga | |
| 21KBAW17EVX | G3/8 | 19 | 38 | 9 | 16 | AISI 316L |
|
Adauga |
