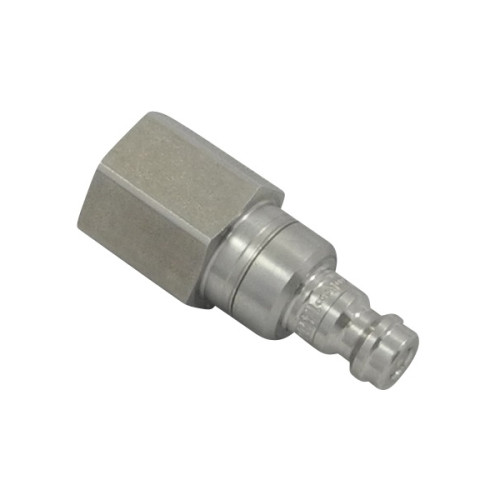

Cupla rapida tata, seria 21 inox, filet interior
Tip produs: 21SBIW-inox
Profil standard European
Seria 21 inox, Diametru nominal DN 5
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -15⁰C ... +200⁰C
Cupla rapida tata, seria 21 inox, AISI 303 / AISI 316L, cu filet interior si supapa pentru inchidere dubla

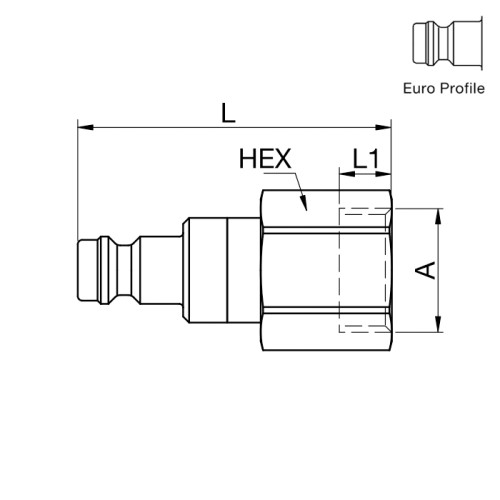

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 21SBIW10RVX | G1/8 | 14 | 40 | 9 | AISI 303 |
|
Adauga | |
| 21SBIW10EVX | 9286X21 10 | G1/8 | 14 | 40 | 9 | AISI 316L |
|
Adauga |
| 21SBIW13RVX | G1/4 | 17 | 42 | 7 | AISI 303 |
|
Adauga | |
| 21SBIW13EVX | 9286X21 13 | G1/4 | 17 | 42 | 7 | AISI 316L |
|
Adauga |
| 21SBIW17RVX | G3/8 | 19 | 42 | 9 | AISI 303 |
|
Adauga | |
| 21SBIW17EVX | G3/8 | 19 | 42 | 9 | AISI 316L |
|
Adauga |
