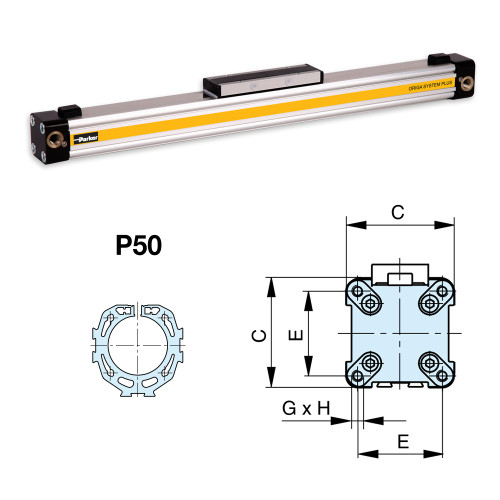

Cilindru pneumatic fara tija ORIGA, Ø80, seria OSP-P
Tip produs: OSPP80
- diametru piston: Ø80 mm
- cursa maxima: 6000 mm
Cilindru pneumatic fara tija Parker-Origa, dubla actionare, amortizare reglabila la capat de cursa si magnet pentru senzori.
- dubla actionare
- amortizare reglabila la capat de cursa
- magnet pentru senzori
- diametru piston: Ø80 mm
- cursa maxima (configurabila in pasi de 1 mm): 6000 mm
(in varianta “long stroke”: 15m - 40m)
- Catalog pdf : Deschide

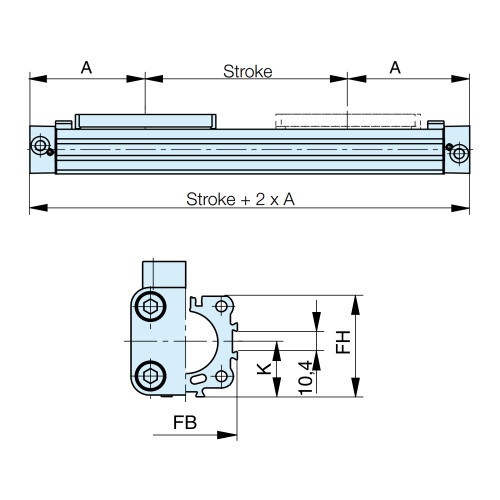

| Cod | Diametru piston mm | Cursa mm | Racord aer | A mm | C mm | G | E mm | H mm | K mm | FH mm | FB mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OSPP800000000200000000000 | 80 | 200 | G1/2 | 260 | 132 | M10 | 96 | 25 | 67 | 122 | 122 |
|
Adauga |
| OSPP800000000400000000000 | 80 | 400 | G1/2 | 260 | 132 | M10 | 96 | 25 | 67 | 122 | 122 |
|
Adauga |
| OSPP800000001000000000000 | 80 | 1000 | G1/2 | 260 | 132 | M10 | 96 | 25 | 67 | 122 | 122 |
|
Adauga |
| OSPP800000001250000000000 | 80 | 1250 | G1/2 | 260 | 132 | M10 | 96 | 25 | 67 | 122 | 122 |
|
Adauga |
| OSPP800000001300000000000 | 80 | 1300 | G1/2 | 260 | 132 | M10 | 96 | 25 | 67 | 122 | 122 |
|
Adauga |
| OSPP800000002400000000000 | 80 | 2400 | G1/2 | 260 | 132 | M10 | 96 | 25 | 67 | 122 | 122 |
|
Adauga |
| OSPP800000002600000000000 | 80 | 2600 | G1/2 | 260 | 132 | M10 | 96 | 25 | 67 | 122 | 122 |
|
Adauga |
