Cilindru pneumatic fara tija ORIGA, Ø50, seria OSP-P

Cilindru pneumatic fara tija ORIGA, Ø50, seria OSP-P

Tip produs: OSPP50

- diametru piston: Ø50 mm
- cursa maxima: 6000 mm

Cilindru pneumatic fara tija Parker-Origa, dubla actionare, amortizare reglabila la capat de cursa si magnet pentru senzori.

- dubla actionare
- amortizare reglabila la capat de cursa
- magnet pentru senzori
- diametru piston: Ø50 mm
- cursa maxima (configurabila in pasi de 1 mm): 6000 mm
(in varianta “long stroke”: 15m - 40m)

Catalog pdf : Deschide

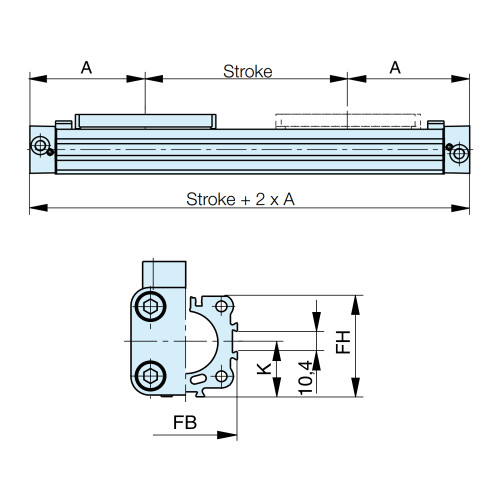

Cod	Diametru piston mm	Cursa mm	Racord aer	A mm	C mm	G	E mm	H mm	K mm	FH mm	FB mm	Cerere oferta
OSPP500000000200000000000	50	200	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000000250000000000	50	250	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000000300000000000	50	300	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000000400000000000	50	400	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000000450000000000	50	450	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000000600000000000	50	600	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000000630000000000	50	630	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000000700000000000	50	700	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000000725000000000	50	725	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000000750000000000	50	750	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000000800000000000	50	800	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000000850000000000	50	850	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000000910000000000	50	910	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000000950000000000	50	950	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000000980000000000	50	980	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000001000000000000	50	1000	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000001200000000000	50	1200	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000001205000000000	50	1205	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000001250000000000	50	1250	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000001500000000000	50	1500	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000001600000000000	50	1600	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000002000000000000	50	2000	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000002500000000000	50	2500	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000002510000000000	50	2510	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000003300000000000	50	3300	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000003350000000000	50	3350	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000003700000000000	50	3700	G1/4	175	87	M6	70	15	43	77	76	Adauga
OSPP500000004100000000000	50	4100	G1/4	175	87	M6	70	15	43	77	76	Adauga
