Cilindru pneumatic fara tija ORIGA, Ø63, seria OSP-P
Tip produs: OSPP63
- diametru piston: Ø63 mm
- cursa maxima: 6000 mm
Cilindru pneumatic fara tija Parker-Origa, dubla actionare, amortizare reglabila la capat de cursa si magnet pentru senzori.
- dubla actionare
- amortizare reglabila la capat de cursa
- magnet pentru senzori
- diametru piston: Ø63 mm
- cursa maxima (configurabila in pasi de 1 mm): 6000 mm
(in varianta “long stroke”: 15m - 40m)
- Catalog pdf : Deschide

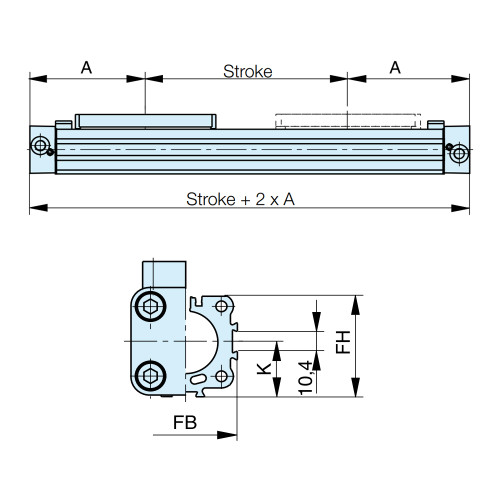

| Cod | Diametru piston mm | Cursa mm | Racord aer | A mm | C mm | G | E mm | H mm | K mm | FH mm | FB mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OSPP630000000400000000000 | 63 | 400 | G3/8 | 215 | 106 | M8 | 78 | 21 | 54 | 96 | 96 |
|
Adauga |
| OSPP630000000500000000000 | 63 | 500 | G3/8 | 215 | 106 | M8 | 78 | 21 | 54 | 96 | 96 |
|
Adauga |
| OSPP630000000680000000000 | 63 | 680 | G3/8 | 215 | 106 | M8 | 78 | 21 | 54 | 96 | 96 |
|
Adauga |
| OSPP630000000800000000000 | 63 | 800 | G3/8 | 215 | 106 | M8 | 78 | 21 | 54 | 96 | 96 |
|
Adauga |
| OSPP630000000840000000000 | 63 | 840 | G3/8 | 215 | 106 | M8 | 78 | 21 | 54 | 96 | 96 |
|
Adauga |
| OSPP630000000840100000000 | 63 | 840 | G3/8 | 215 | 106 | M8 | 78 | 21 | 54 | 96 | 96 |
|
Adauga |
| OSPP630000000840E00000000 | 63 | 840 | G3/8 | 215 | 106 | M8 | 78 | 21 | 54 | 96 | 96 |
|
Adauga |
| OSPP630000000850000000000 | 63 | 850 | G3/8 | 215 | 106 | M8 | 78 | 21 | 54 | 96 | 96 |
|
Adauga |
