Cilindru pneumatic fara tija ORIGA, Ø40, seria OSP-P

Cilindru pneumatic fara tija ORIGA, Ø40, seria OSP-P

Tip produs: OSPP40

- diametru piston: Ø40 mm
- cursa maxima: 6000 mm

Cilindru pneumatic fara tija Parker-Origa, dubla actionare, amortizare reglabila la capat de cursa si magnet pentru senzori.

- dubla actionare
- amortizare reglabila la capat de cursa
- magnet pentru senzori
- diametru piston: Ø40 mm
- cursa maxima (configurabila in pasi de 1 mm): 6000 mm

Catalog pdf : Deschide

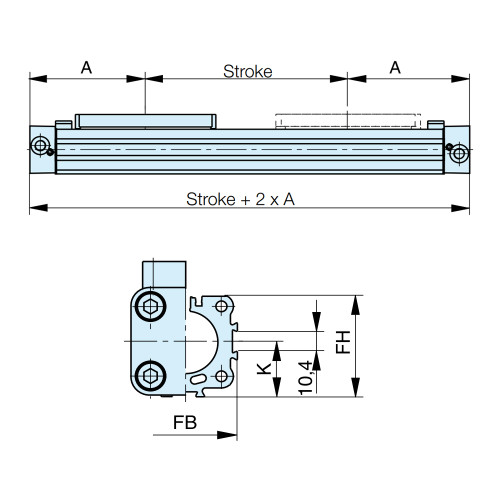

Cod	Diametru piston mm	Cursa mm	Racord aer	A mm	C mm	G	E mm	H mm	K mm	FH mm	FB mm	Cerere oferta
OSPP400000000100000000000	40	100	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000000250000000000	40	250	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000000300000000000	40	300	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000000400000000000	40	400	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000000425000000000	40	425	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000000450000000000	40	450	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000000460000000000	40	460	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000000500000000000	40	500	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000000550000000000	40	550	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000000670000000000	40	670	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000000680000000000	40	680	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000000750000000000	40	750	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000000800000000000	40	800	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000000850000000000	40	850	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000000900000000000	40	900	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000000920000000000	40	920	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000001000000000000	40	1000	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000001100000000000	40	1100	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000001150000000000	40	1150	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000001200000000000	40	1200	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000001300000000000	40	1300	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000001400000000000	40	1400	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000001500000000000	40	1500	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000001600000000000	40	1600	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000001625000000000	40	1625	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000001650000000000	40	1650	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000001700000000000	40	1700	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000002000000000000	40	2000	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000002100000000000	40	2100	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000002105000000000	40	2105	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000002150000000000	40	2150	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000002200000000000	40	2200	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000002300000000000	40	2300	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000002400000000000	40	2400	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000002950000000000	40	2950	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000003000000000000	40	3000	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000003050000000000	40	3050	G1/4	150	69	M6	54	15	34	63	62	Adauga
OSPP400000004900000000000	40	4900	G1/4	150	69	M6	54	15	34	63	62	Adauga
