Valva stop 3/2 cu ventilare, actionare electrica / pneumatica, seria P31 Parker Global

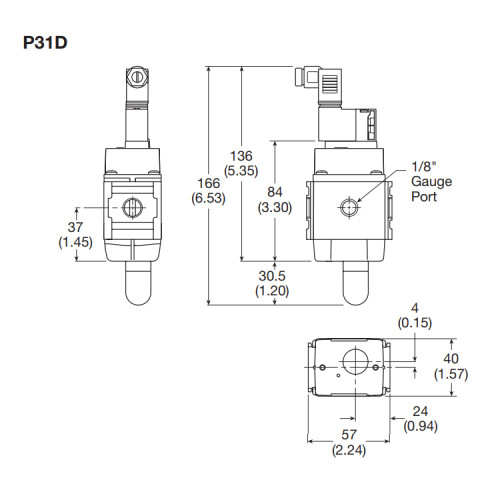

Tip produs: P31D
Parker

Presiune maxima: 10 bar / 17 bar
Temperatura: -10⁰C / -20⁰C ... +50⁰C / +80⁰C

Valva stop 3/2 cu ventilare (valva de oprire ON/OFF 3/2 cu depresurizare), seria P31D Parker Global, este disponibila in varianta cu actionare electrica sau pilotata pneumatic.

Presiune maxima (actionare electrica): 10 bar
Presiune maxima (pilot pneumatic): 17 bar
Temperatura (actionare electrica): -10⁰C ... +50⁰C
Temperatura (pilot pneumatic): -20⁰C ... +80⁰C

Informatii de la producator

Global FRL Valves (Soft Start/Dump Valves)

Global FRL soft start/dump valve product offering includes individual soft start or dump valves or combined soft start/dump valves.

Parker's Global P31D and P32D Global Dump Valves efficiently manage pressure by safely and quickly exhausting pneumatic energy in an industrial environment. These quick dump valves are high flow, normally closed, 3-port, 2-position directional control valves. Upon energizing the solenoid, inlet air is applied to the top of the piston. The piston pushes against the spring and opens the main valve providing full flow air to the downstream. When the solenoid is de-energized, the main valve closes allowing downstream air to exhaust rapidly through the bottom plug. The bottom plug is tapped so that exhaust may be piped away or fitted with a muffler/silencer. These global dump valves can be mounted using a modular connector to other P31/P32 Global Air Preparation products.



Parker P31S and P32S Global Soft Start Valves offer increased productivity by providing safe introduction of pressure to machines or systems and potentially reducing damage that can occur at start up. They allow the pressure to gradually build to a set point before fully opening to deliver full air line pressure. The controlled introduction of pressure can be an important safety factor and prevent damage to tooling when the air pressure is introduced at machine or system start up. When pressure is supplied to the inlet port, gradual filling of the downstream system occurs through the adjustment needle valve. The piston opens the main valve when the downstream side of the valve reaches approximately 60% of the supply pressure. The ramp up time to reach the switch-over pressure is adjustable via the needle valve in the cover. The P31S and P32S Global Soft Start Valves can be mounted using a modular connector to other P31 and P32 Global Air Preparation Products.



P31T and P32T Modular Global Combined Soft Start/Dump Valves provide for the safe introduction of pressure to machines or systems. Soft start/dump valves, when set, allow the pressure to gradually build to the set point, before fully opening, to deliver full flow air line pressure. The controlled introduction can be an important safety factor and prevent damage to tooling when air pressure is introduced at machine or system start up. When the valve is installed into the pneumatic system and the pilot operator receives no signal, the air is blocked at port 1. When a pilot signal is received at the pilot operator, the valve shifts, closing the connection between ports 2 and 3. At the same time, air flow begins between ports 1 and 2 at a slow rate, controlled by the needle valve located on top of the valve. When the downstream pressure reaches approximately 60% of the supply pressure, the main valve spool opens, allowing full flow through the valve in the system. If pilot signal or system pressure is lost, the valve returns to its initial state, venting the downstream pressure through port 3.



Pressure supply piping must be the same size as the inlet port or larger, to ensure the pilot valve receives sufficient pressure supply during high flow conditions. The valve should be mounted downstream of the FRL, with the soft start adjustment needle easily accessible. The P31T and P32T Global Soft Start/Dump Valves can be mounted using a modular connector to other P31 and P32 Global Air Preparation Products. Note: soft start/dump valves are not intended to be used as emergency shut-off valves, but should be placed after a manual shut off valve.



Features/Benefits:

·         Dump Valves

o   Safely and quickly exhaust pneumatic energy

o   Robust & lightweight aluminum construction

o   3-way, 2-function automatically dumps downstream pressure on the loss of pilot signal

o   High flow and exhaust capability

o   Solenoid or air pilot operation options

o   Silencer included

·         Soft Start

o   3-way, 2-position function ensures safe pressure introduction

o   Adjustable slow start

o   Solenoid or air pilot operation options

·         Soft Start/Dump Valves

o   Available with an adjustable soft start to allow a gradual introduction of pressure into machinery on start up

o   3-way, 2-position function ensures safe pressure introduction

o   High flow and exhaust capability

o   Solenoid or air pilot operation options

o   Adjustable slow start

o   Silencer included


Product Style Dump Valve
Port Size 1/4 inch
Port Type BSPP
Coil Type 15 mm Solenoid
Input Voltage 24 VDC
Override Functionality Non-Locking Manual Override
Pneumatic Calculator, 2018 view
Library of available B10 datasheets for Pneumatic Division products view
Updated Parker Global and P3Y Air Preparation System, Catalog 0760P-1 (Revised 09/28/20). view
0700P-8 Catalog Air Preparation Products, Global FRL Products\r view
Accessories for FRLs, Installation and Service (Revised 06-01-19). view
  • Catalog gama Parker Global FRL si P3Y : Deschide
  • Catalog P31D & P32D Valve Stop Parker Global : Deschide
  • Catalog P31D & P32D Valve Stop Parker Global 2024 : Deschide
Cod Racord aer Debit dm³/s Info Stoc Cerere oferta
P31DA12SGNC1FN G1/4 17 120Vac
indisponibil
Adauga
P31DA12SGNC2CN G1/4 17 24Vdc
Adauga
P31DA12PPN G1/4 17 pilot pneumatic
indisponibil
Adauga
