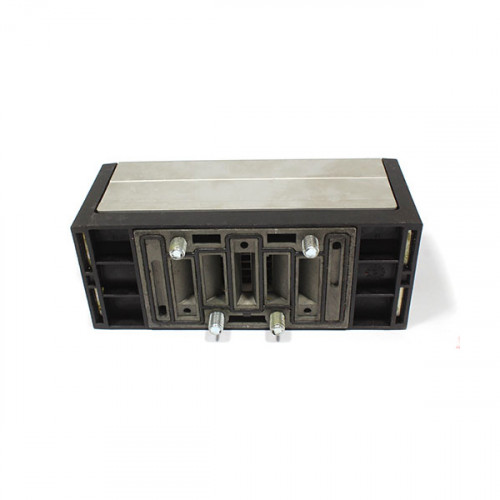

Valva ISO 5599, seria DX, cu actionare pneumatica
Tip produs: valve-DX-ISOmax-5599
- valve seria DX cu functionare pe placa de baza ISO
- tip ISO 5599, gama DX1, DX2 si DX3
- control pneumatic
- valve seria DX cu functionare pe placa de baza ISO 1, 2, 3
- tip ISO 5599, gama DX1 - ISO 1, DX2 - ISO 2 si DX3 - ISO 3
- control pneumatic (actionare pneumatica)
- Presiune de lucru : -0,9 to 12 bar
- Temperatura minima de lucru : -10 ⁰C
- Temperatura maxima de lucru : 60 ⁰C
- Debit nominal: DX1 - 1150 l/min, DX2 - 2330 l/min, DX3 - 4050 l/min
- Debit maxim: DX1 - 1680 l/min, DX2 - 3640 l/min, DX3 - 6420 l/min
- certificare ATEX : CE Ex II 2 GD c 85 ⁰C
- Catalog valve ISO seria DX : Deschide
| Cod | Racord aer | Info | Stoc | Cerere oferta |
|---|---|---|---|---|

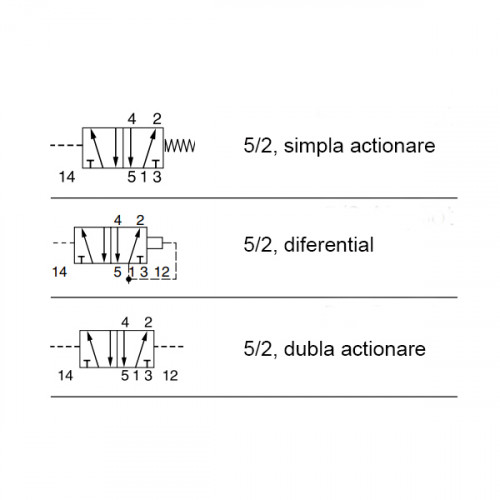

| DX1-421-70 | ISO-1 | 5/2, simpla actionare |
|
Adauga |
| DX2-421-70 | ISO-2 | 5/2, simpla actionare |
|
Adauga |
| DX3-421-70 | ISO-3 | 5/2, simpla actionare |
|
Adauga |
| DX1-451-70 | ISO-1 | 5/2, diferential |
|
Adauga |
| DX2-451-70 | ISO-2 | 5/2, diferential |
|
Adauga |
| DX3-451-70 | ISO-3 | 5/2, diferential |
|
Adauga |
| DX1-406-70 | ISO-1 | 5/2, dubla actionare |
|
Adauga |
| DX2-406-70 | ISO-2 | 5/2, dubla actionare |
|
Adauga |
| DX3-406-70 | ISO-3 | 5/2, dubla actionare |
|
Adauga |

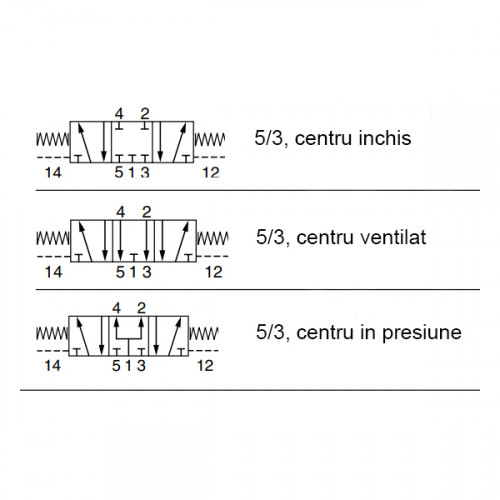

| DX1-416-70 | ISO-1 | 5/3, centru inchis |
|
Adauga |
| DX2-416-70 | ISO-2 | 5/3, centru inchis |
|
Adauga |
| DX3-416-70 | ISO-3 | 5/3, centru inchis |
|
Adauga |
| DX1-411-70 | ISO-1 | 5/3, centru deschis |
|
Adauga |
| DX2-411-70 | ISO-2 | 5/3, centru deschis |
|
Adauga |
| DX3-411-70 | ISO-3 | 5/3, centru deschis |
|
Adauga |
| DX1-413-70 | ISO-1 | 5/3, centru in presiune |
|
Adauga |
| DX2-413-70 | ISO-2 | 5/3, centru in presiune |
|
Adauga |
