Valva 2/2 de blocare, filete BSPT / NPT
Tip produs: 7886
Presiune maxima de lucru: 10 bar
Temperatura: -20⁰C ... +70⁰C
Valva de blocare cu porturi filetate
- se utilizeaza in general pentru blocarea cilindrilor pneumatici
- constructie solida, fiabilitate foarte buna
- corp din alama tratata, rezistent la medii agresive (atmosfera salina, scantei)
- design compact, corp si racord pilot orientabil pentru facilitatea conectarii in orice pozitie
- capacitate maxima de debit
- timp de reactie foarte bun datorita nivelelor de presiune de comanda
- Conformitate : ROHS
- Presiune maxima de lucru : 10 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 70 ⁰C
- Corp : alama nichelata
- Sub-base : alama nichelata
- Garnituri : NBR (cauciuc)
- Diafragma : NBR (cauciuc)
- Tratament : PTFE (teflon)
- Catalog racorduri cu functii pilotate : Deschide

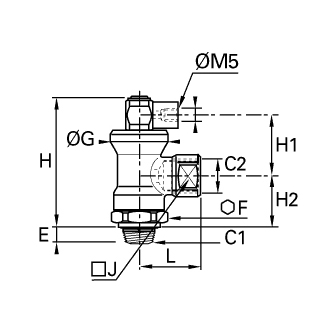

| Cod | C1 | C2 | F mm | ØG mm | H mm | H1 mm | H2 mm | J mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7886 11 11 | NPT1/8 | NPT1/8 | 21 | 24 | 51,5 | 25 | 20 | 17 | 25 |
|
Adauga |
| 7886 13 10 | R1/8 | R1/4 | 21 | 24 | 51,5 | 25 | 20 | 17 | 26,5 |
|
Adauga |
| 7886 13 13 | R1/4 | R1/4 | 21 | 24 | 51,5 | 25 | 20 | 17 | 26,5 |
|
Adauga |
| 7886 14 14 | NPT1/4 | NPT1/4 | 21 | 24 | 51,5 | 25 | 20 | 17 | 26,5 |
|
Adauga |
| 7886 17 17 | R3/8 | R3/8 | 24 | 28 | 57 | 25 | 24 | 27 | 34 |
|
Adauga |
| 7886 18 18 | NPT3/8 | NPT3/8 | 24 | 28 | 57 | 25 | 24 | 27 | 34 |
|
Adauga |
| 7886 21 21 | R1/2 | R1/2 | 24 | 28 | 57 | 25 | 24 | 27 | 40 |
|
Adauga |
| 7886 22 22 | NPT1/2 | NPT1/2 | 24 | 28 | 57 | 25 | 24 | 27 | 40 |
|
Adauga |
