Submicrofiltru seria P31 Parker Global

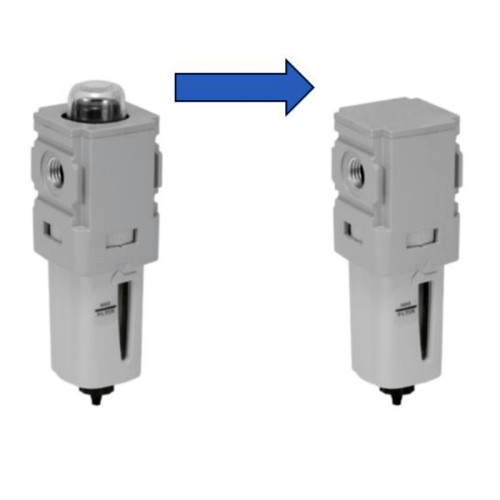

Global FRL Particulate Filters deliver high moisture removal in a compact package. These filters are used for the removal of solid particle contaminants down to 5 micron and the separation of bulk liquids. This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system.  For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. The various options available (such as auto drain, manual drain, and an assortment of bowl options) make this series easy to design to your application. The Global FRL Particulate Filters are available in (3) sizes: Miniature (P31F), Compact (P32F) and Standard (P33F). The Global FRL Particulate Filters can be mounted using a modular connector to other Global FRL air preparation products. P32 and P33 sizes are interchangeable, where the application calls for an increased flow rate. They are modularly joined together using the same connectors.

Global FRL Coalescing Filters, with available differential pressure gauge, are designed to remove liquid aerosols, water, oil and submicron particulate matter from your pneumatic system. These filters will provide oil free air for several demanding applications. The P32F is specifically designed for the removal of solid particles, water and oil aerosols down to 0.01 micron. The modular style of the P32F allows you to connect any combination of similar air preparation product by using connector brackets. The various options available (such as auto drain, twist drain, DPI gauge and assortment of bowl options) make this series easy to configure for your application.The Global FRL Coalescing Filters also come in (3) sizes: Miniature (P31F), Compact (P32F) and Standard (P33F).

Markets

  •   Machine Tools

  •   Misc. Industrial

  •   Misc. Manufacturing

  •   Air and Gas

  •   Appliances

  •   Factory Automation

  •   Entertainment Automation

  •   Molding

  •   Packaging Machinery

  •   Printing and Marking Equipment

  •   Vehicle Assembly Facilities

  •   Wearing Apparel

  •   Food and Beverage

  •   Misc. Processing

Features & Benefits

  •   Integral 1/2" or 3/4" ports (NPT, BSPP, BSPT)

  •   High efficiency 5 micron element as standard

  •   Excellent water removal efficiency

  •   Robust but lightweight aluminum construction

  •   Positive bayonet latch to ensure correct & safe fitting

Applications

  •   To be used in combination with valves and cylinders

  •   To protect tools and cylinder against corrosion

  •   To reduce friction

  •   At the transfer point from workshop to machine

  •   In combination with tools for assembly and on the shop floor

  •   For all type of machines and tools pneumatic driven
