Senzor presiune, semnal pneumatic
Tip produs: 780A
Presiune maxima de lucru: 8 bar
Temperatura: -15⁰C ... +60⁰C

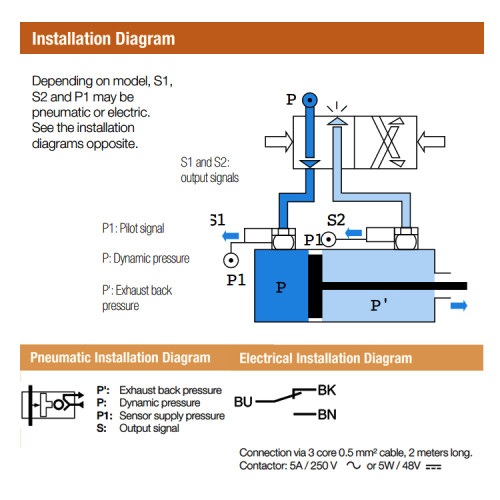

Poate fi montat pe valve sau pe cilindri, usor de utilizat datorita nivelului scazut de contrapresiune.
- Conformitate : ROHS
- Presiune maxima de lucru : 8 bar
- Temperatura minima de lucru : -15 ⁰C
- Temperatura maxima de lucru : 60 ⁰C
- Corp : polimer tehnic
- Sub-base : zamac
- Garnituri : NBR (cauciuc)
- Inel retinere : otel inox
- Garnitura : polimer tehnic
- Tratament : PTFE (teflon)
- Surub : alama
- Sensori pneumatici Legris : Deschide

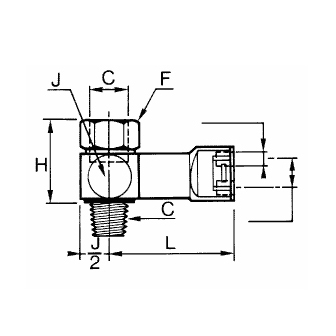

| Cod | ØD inch | C | F mm | H mm | J mm | L mm | C1 | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 7808 04 11 | 5/32 | NPT1/8 | 14,288 | 22,860 | 15,748 | 44,196 |
|
Adauga | |
| 7808 04 14 | 5/32 | NPT1/4 | 15,875 | 27,686 | 19,304 | 45,974 |
|
Adauga | |
| 7808 04 18 | 5/32 | NPT3/8 | 22,225 | 28,702 | 23,368 | 48,514 |
|
Adauga | |
| 7808 04 22 | 5/32 | NPT1/2 | 25,400 | 29,718 | 31,242 | 52,070 |
|
Adauga | |
| 7808 20 11 | NPT1/8 | 14,288 | 22,860 | 15,748 | 40,132 | 10-32 |
|
Adauga | |
| 7808 20 14 | NPT1/4 | 15,875 | 27,686 | 19,304 | 42,164 | 10-32 |
|
Adauga | |
| 7808 20 18 | NPT3/8 | 22,225 | 28,702 | 23,368 | 44,704 | 10-32 |
|
Adauga |
