Robinet cu sfera, racorduri push-in

Tip produs: 4020
Parker Legris

Presiune maxima de lucru: 10 bar
Temperatura: -15⁰C ... +100⁰C

Robinet cu sfera cu autocuratare si DN maximal.

- Debit maximal (full flow).
- Sfera cu autocuratare si DN-ul maximal (full bore) mentine circuitul robinetului curat, fara depuneri.
- Racordurile rapide push-in carstick cartridge asigura rezistenta la variatiile bruste de presiune (lovituri de berbec).
- Polimerul tehnic inert asigura cea mai buna rezistenta mecanica, termica si chimica.
Aprobarile FDA, NSF 51, corespund cerintelor WQA (Water Quality Association).

  • Conformitate : ROHS
  • Presiune maxima de lucru : 10 bar
  • Temperatura minima de lucru : -15 ⁰C
  • Temperatura maxima de lucru : 100 ⁰C

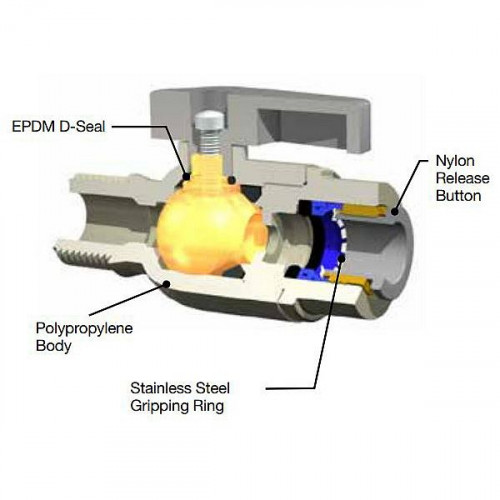

  • Corp : polimer cu fibra de sticla
  • Tija actionare : POLYSULFON
  • Garnituri : EPDM (cauciuc)
  • Maner actionare : poliamida
  • Inel retinere : otel inox

Informatii de la producator

LIQUIfit® Polymer Ball Valves for Food and Beverages

LIQUIfit® ball valves offer a dedicated solution to water treatment and beverages handling. These compact and reliable valves ensure sealing protection and excellent cleanliness.

Product Features/Benefits:



  • Fully compatible for use with water, beverages and liquid food stuffs (liquids & gas)
  • Reliable for Peace of Mind
  • Push-in connection and disconnection
  • Compact solution
  • Full flow to limit turbulence
  • Self-cleaning balls maintains the cleanliness of the circuits
  • Inert technical polymer providing the best mechanical strength, thermal and chemical resistance



Markets:

  • Industrial Fluids
  • Beverage Process
  • Food Process,
  • Inert Gases




Applications:

  • Water Purification
  • Food & Beverages
  • Beverage Dispensers
  • Inert Gases
Brand Parker
Brand Legris
Division Low Pressure Connectors Europe Division
Industry Industrial Manufacturing Equipment
Industry Healthcare & Life Sciences
Application Beverage Dispensers
Application Inert Gases
Application Cooling
Application Food Process
Application Water Purification
Application Water Coolers
Technology Fluid & Gas Handling
Product Type Industrial Valves
Product Style Ball Valves
Product Series LIQUIfit®
Maximum Operating Pressure 10 bar
Maximum Operating Pressure 145 psi
Shape Straight
Configuration Tube to Tube
Connection 1 Type Tube
Connection 1 Size 6 mm
Connection 2 Type Tube
Connection 2 Size 06 mm
Maximum Operating Temperature 100 °C
Maximum Operating Temperature 212 °F
Minimum Operating Temperature -15 °C
Minimum Operating Temperature 5 °F
For Fluid Type Water
For Fluid Type Beverages
Body Material Polypropylene with Glassfiber
Seal Material EPDM
Gripping Ring Material Stainless Steel
Function 2/2
Mounting Type Inline
Actuation Type Manual
Stem Material Polymer
Ball Material Polymer
Handle Type Grey
Handle Type Short Lever (Polymer)
Weight 0.019 kg
Quantity per Box 10
Discover the LIQUIfit® range: A comprehensive offer with Push-in fittings and tubings dedicated to drinking water and beverages applications. view
Certificat de conformité - RoHS LPCE : déclaration de conformité selon la directive VLE 2011/65/CE sur les substances dangereuses. view
This video in English introduces the Parker Legris LIQUIfit Water and Beverage Ball Valves range, and provides an overview of its specifications and benefits. view
Declaration Regarding Regulation (EC) No. 1907/2006 of the European Parliament and the Council Dated 18 December 2006 Concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Published on 30 December 2006 in the Official Journal of the European Union 396/1. view
LIQUIfit Ball Valves Datasheet view
Certificate of conformity - Mineral Conflict Statement_connectic. view
Parker/Legris’ LIQUIfit®range has been developed for liquid transfer applications. Those fittings have been designed to ensure reliable and compact connections; no fluid contamination occurs, and environmental protection is guaranteed. view
Inventor of push-in fittings and market leader in quick couplings, Parker Legris Rectus has a reputed experience in fluid transfer for production automation, transportation, food processing, thermal management and medical applications. view
4020 06 00WP2 Part Solutions

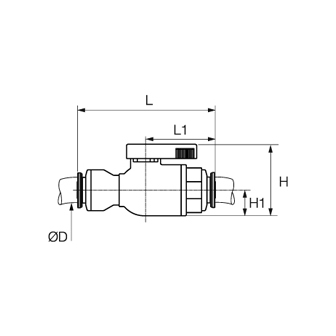

Cod ØD mm H mm H1 mm L mm L1 mm Stoc Cerere oferta
4020 06 00WP2 6 36 13 57 27
Adauga
4020 08 00WP2 8 36 13 60 27
Adauga
4020 10 00WP2 10 61 38 47 33
Adauga
4020 12 00WP2 12 36,5 13 88 43
Adauga
