Robinet cu sfera cu autocuratare si DN maximal.
- Debit maximal (full flow).
- Sfera cu autocuratare si DN-ul maximal (full bore) mentine circuitul robinetului curat, fara depuneri.
- Racordul rapid push-in carstick cartridge asigura rezistenta la variatiile bruste de presiune (lovituri de berbec).
- Polimerul tehnic inert asigura cea mai buna rezistenta mecanica, termica si chimica.
Aprobarile FDA, NSF 51, corespund cerintelor WQA (Water Quality Association).
- Conformitate : ROHS
- Presiune maxima de lucru : 10 bar
- Temperatura minima de lucru : -15 ⁰C
- Temperatura maxima de lucru : 100 ⁰C
- Corp : polimer cu fibra de sticla
- Tija actionare : POLYSULFON
- Garnituri : EPDM (cauciuc)
- Maner actionare : poliamida
- Inel retinere : otel inox
Informatii de la producator
LIQUIfit® Polymer Ball Valves for Food and Beverages

LIQUIfit® ball valves offer a dedicated solution to water treatment and beverages handling. These compact and reliable valves ensure sealing protection and excellent cleanliness.
Product Features/Benefits:
- Fully compatible for use with water, beverages and liquid food stuffs (liquids & gas)
- Reliable for Peace of Mind
- Push-in connection and disconnection
- Compact solution
- Full flow to limit turbulence
- Self-cleaning balls maintains the cleanliness of the circuits
- Inert technical polymer providing the best mechanical strength, thermal and chemical resistance
Markets:
- Industrial Fluids
- Beverage Process
- Food Process,
- Inert Gases
Applications:
- Water Purification
- Food & Beverages
- Beverage Dispensers
- Inert Gases
Brand | Parker |
Brand | Legris |
Division | Low Pressure Connectors Europe Division |
Industry | Industrial Manufacturing Equipment |
Industry | Healthcare & Life Sciences |
Application | Beverage Dispensers |
Application | Inert Gases |
Application | Cooling |
Application | Food Process |
Application | Water Purification |
Application | Water Coolers |
Technology | Fluid & Gas Handling |
Product Type | Industrial Valves |
Product Style | Ball Valves |
Product Series | LIQUIfit® |
Maximum Operating Pressure | 10 bar |
Maximum Operating Pressure | 145 psi |
Shape | Straight |
Configuration | Tube to Swivel Port |
Connection 1 Type | Tube |
Connection 1 Size | 3/8 inch |
Connection 2 Type | Female NPTF |
Connection 2 Size | 3/8 inch |
Maximum Operating Temperature | 100 °C |
Maximum Operating Temperature | 212 °F |
Minimum Operating Temperature | -15 °C |
Minimum Operating Temperature | 5 °F |
For Fluid Type | Water |
For Fluid Type | Beverages |
Body Material | Polypropylene with Glassfiber |
Seal Material | EPDM |
Gripping Ring Material | Stainless Steel |
Function | 2/2 |
Mounting Type | Inline |
Actuation Type | Manual |
Stem Material | Polymer |
Ball Material | Polymer |
Handle Type | Grey |
Handle Type | Short Lever (Polymer) |
Weight | 0.028 kg |
Quantity per Box | 10 |
Declaration Regarding Regulation (EC) No. 1907/2006 of the European Parliament and the Council Dated 18 December 2006 Concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Published on 30 December 2006 in the Official Journal of the European Union 396/1. | view |
LIQUIfit Ball Valves Datasheet | view |
Certificate of conformity - Mineral Conflict Statement_connectic. | view |
Parker/Legris’ LIQUIfit®range has been developed for liquid transfer applications. Those fittings have been designed to ensure reliable and compact connections; no fluid contamination occurs, and environmental protection is guaranteed. | view |
This video in English introduces the Parker Legris LIQUIfit Water and Beverage Ball Valves range, and provides an overview of its specifications and benefits. | view |
Inventor of push-in fittings and market leader in quick couplings, Parker Legris Rectus has a reputed experience in fluid transfer for production automation, transportation, food processing, thermal management and medical applications. | view |
Certificat de conformité - RoHS LPCE : déclaration de conformité selon la directive VLE 2011/65/CE sur les substances dangereuses. | view |
Discover the LIQUIfit® range: A comprehensive offer with Push-in fittings and tubings dedicated to drinking water and beverages applications. | view |
4023 60 18WP2 | Part Solutions |
- Catalog robineti Liquifit : Deschide

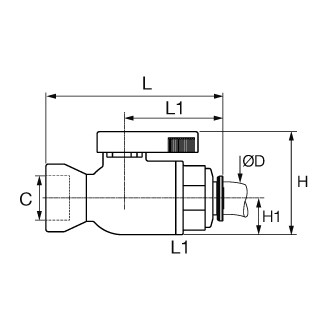

Cod | ØD inch | C | H mm | H1 mm | L mm | L1 mm | Stoc | Cerere oferta |
---|---|---|---|---|---|---|---|---|
4023 60 18WP2 | 3/8 | NPTF3/8 | 36 | 13 | 64 | 33,5 |
|
