Racord rapid T asimetric, Liquifit, filet exterior BSPT
Tip produs: 6503
Presiune maxima de lucru: 16 bar
Temperatura: -10⁰C ... +95⁰C
Vacuum: 755 mmHg
Racord rapid T asimetric, filet exterior conic
- constructie robusta, compacta, instalare usoara
- debit maximal (full flow)
- datare si testare pierderi pentru fiecare produs in parte pentru asigurarea calitatii si trasabilitatii
- respecta standardele NSF 51, NSF 61 C HOT, WRAS, FDA, ACS, in concordanta cu reglementarea (EC) 1935/2004, RoHS
- Conformitate : ROHS
- Presiune maxima de lucru : 16 bar
- Temperatura minima de lucru : -10 ⁰C
- Temperatura maxima de lucru : 95 ⁰C
- Vacuum : 755 mmHg
- Corp : polimer biologic
- Sub-base : polimer biologic
- Garnituri : EPDM (cauciuc)
- Inel retinere : otel inox

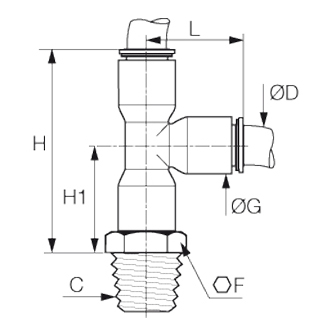

| Cod | ØD mm | C | F mm | ØG mm | H mm | H1 mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 6503 06 13WP2 | 6 | R1/4 | 14 | 10,5 | 40 | 22 | 18,5 |
|
Adauga |
| 6503 08 10WP2 | 8 | R1/8 | 19 | 13,5 | 50 | 27 | 23 |
|
Adauga |
| 6503 08 13WP2 | 8 | R1/4 | 19 | 13,5 | 50 | 27 | 23 |
|
Adauga |
| 6503 08 17WP2 | 8 | R3/8 | 19 | 13,5 | 50 | 27 | 23 |
|
Adauga |
| 6503 12 17WP2 | 12 | R3/8 | 22 | 19 | 65,5 | 34,5 | 31 |
|
Adauga |
| 6503 12 21WP2 | 12 | R1/2 | 22 | 19 | 65,5 | 34,5 | 31 |
|
Adauga |
