Racord rapid T asimetric, LF6900 alama nichelata FDA, filet exterior BSPT
Tip produs: 6903
Presiune maxima de lucru: 16 bar
Temperatura: -10⁰C ... +95⁰C
Vacuum: 755 mmHg
Racord rapid T asimetric orientabil alama nichelata FDA si polimer, filet exterior conic
- strangere pe exterior cu cheie fixa
- constructie robusta, compacta, instalare usoara
- debit maximal (full flow)
- datare si testare pierderi pentru fiecare produs in parte pentru asigurarea calitatii si trasabilitatii
- conformitate FDA CFR21, REACH si RoHS
- Conformitate : ROHS
- Presiune maxima de lucru : 16 bar
- Temperatura minima de lucru : -10 ⁰C
- Temperatura maxima de lucru : 95 ⁰C
- Vacuum : 755 mmHg
- Corp : polimer biologic
- Sub-base : alama nichelata (procedeu chimic aprobat FDA)
- Garnituri : EPDM (cauciuc)
- Inel retinere : otel inox

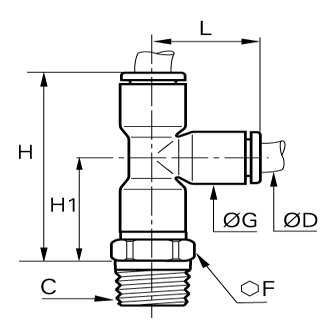

| Cod | ØD mm | C | F mm | ØG mm | H mm | H1 mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 6903 04 10 | 4 | R1/8 | 10 | 8,5 | 31 | 18 | 14,5 |
|
Adauga |
| 6903 04 13 | 4 | R1/4 | 14 | 8,5 | 31 | 19 | 14,5 |
|
Adauga |
| 6903 06 13 | 6 | R1/4 | 14 | 10,5 | 39 | 23 | 17,5 |
|
Adauga |
| 6903 08 10 | 8 | R1/8 | 13 | 13,5 | 53 | 30 | 23 |
|
Adauga |
| 6903 08 13 | 8 | R1/4 | 14 | 13,5 | 52 | 29 | 23 |
|
Adauga |
| 6903 08 17 | 8 | R3/8 | 17 | 13,5 | 52 | 29 | 23 |
|
Adauga |
| 6903 10 13 | 10 | R1/4 | 15 | 16 | 61 | 35 | 26,5 |
|
Adauga |
| 6903 10 17 | 10 | R3/8 | 17 | 16 | 61 | 35 | 26,5 |
|
Adauga |
| 6903 10 21 | 10 | R1/2 | 21 | 16 | 61 | 35 | 26,5 |
|
Adauga |
| 6903 12 17 | 12 | R3/8 | 19 | 19 | 70 | 39 | 31 |
|
Adauga |
| 6903 12 21 | 12 | R1/2 | 21 | 19 | 70 | 39 | 31 |
|
Adauga |
