Racord rapid L, Liquifit, plug-in, tub in inch
Tip produs: 6A82
Presiune maxima de lucru: 16 bar
Temperatura: -10⁰C ... +95⁰C
Vacuum: 755 mmHg
Racord rapid cot plug-in
- constructie robusta, compacta, instalare usoara
- debit maximal (full flow)
- datare si testare pierderi pentru fiecare produs in parte pentru asigurarea calitatii si trasabilitatii
- respecta standardele NSF 51, NSF 61 C HOT, WRAS, FDA, ACS, in concordanta cu reglementarea (EC) 1935/2004, RoHS
- Conformitate : ROHS
- Presiune maxima de lucru : 16 bar
- Temperatura minima de lucru : -10 ⁰C
- Temperatura maxima de lucru : 95 ⁰C
- Vacuum : 755 mmHg
- Corp : polimer biologic
- Garnituri : EPDM (cauciuc)
- Inel retinere : otel inox

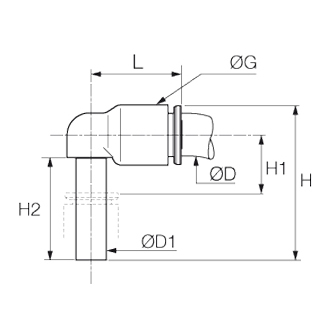

| Cod | ØD inch | ØD1 inch | ØG mm | H mm | H1 mm | H2 mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 6382 08 60WP2 | 5/16 | 3/8 | 16 | 39 | 10 | 24,5 | 26 |
|
Adauga |
| 6382 56 00WP2 | 1/4 | 1/4 | 11 | 30,5 | 11 | 18 | 18 |
|
Adauga |
| 6382 56 60WP2 | 1/4 | 3/8 | 16 | 39 | 9 | 24,5 | 25,5 |
|
Adauga |
| 6382 60 00WP2 | 3/8 | 3/8 | 16 | 39 | 9 | 24,5 | 26,5 |
|
Adauga |
| 6382 62 00WP2 | 1/2 | 1/2 | 22 | 49 | 13 | 28,5 | 36 |
|
Adauga |
