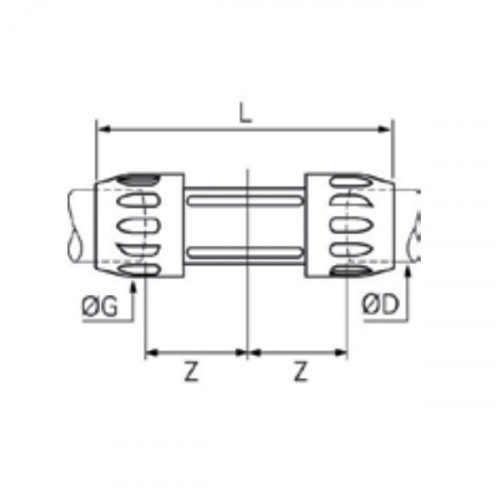

Racord rapid drept Transair, Ø16.5, Ø25, Ø40
Tip produs: 6606_17_25_40
Presiune maxima de lucru: 16 bar / 13 bar / 7 bar
Temperatura: -20⁰C ... +45⁰C / +60⁰C / +85⁰C
Vacuum: 755 mmHg
Conector rapid drept (prelungitor) pentru teava Transair de dimensiuni Ø16,5, Ø25, Ø40 mm
- Racordare rapida
- Design cu trecere directa (full bore): diametru interior adecvat atat pentru tevi, cat si pentru racorduri
- Interschimbabil (se aplică Ø 16,5, Ø 25 și Ø 40) si reutilizabil
- Materiale neinflamabile (standardul UL94-HB)
- Presiune maxima de lucru: 16 bari (temperaturi: -20°C ... +45°C)
- Presiune maxima de lucru: 13 bari (temperaturi: -20°C ... +60°C)
- Presiune maxima de lucru: 7 bari (temperaturi: -20°C ... +85°C)
- Temperatura: -20⁰C ... +85⁰C
- Vacuum: 755 mmHg
Informatii de la producator
Transair® Fittings for Aluminum Pipe
1/2" (16.5mm) Union
Transair Fittings for Aluminum Pipe install fast and with minimal tooling. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks. Transair fittings come in a variety of styles for easy assembly and layout design of compressed air, vacuum, and industrial/inert gas systems. All Transair components can integrate into existing copper or steel systems, allowing for easy expansion of an existing system.
The “full bore” design of Transair fittings, paired with the low coefficient of friction in the aluminum pipe ensures optimal flow throughout the compressed air system. All fittings are 100% recyclable, silicone free, and made from materials with no propagation of flame. All fittings conform to the UL94HB standard. Parker Hannifin warrants all Transair components to be free of defects in material and workmanship for 10 years from the date of installation.
Transair 1/2” (16.5mm), 1” (25mm), and 1-1/2” (40mm) fittings use push-to-connect technology. All fittings ship from the factory pre-torqued and marked. To install, just push the pipe into the fitting until the insertion mark meets the end of the fitting. There is no need to tighten the nut of the fitting further. All 1/2” 1”, and 1-1/2”; pipes come from the factory with the insertion depth pre-marked, but if field cutting is required, the insertion depth needs to be marked using a Transair marking tool.
Transair 2” (50mm) and 2-1/2” (63mm) fittings use snap ring technology. With a snap ring fitting, a polyamide retaining ring is inserted into 2 holes at the end of the pipe. This ring, along with tightening the fitting nuts with a spanner wrench, prevents the fitting from coming off the pipe. All 2”and 2-1/2” pipes come from the factory with the snap ring holes pre-drilled, but if field cutting is required, the snap rings holes need to be drilled using a Transair Drill Jig.
Transair 3” (76mm), 4” (101mm), and 6” (168mm) fittings use clamshell technology. The clamshell fitting has a removable cartridge (seal) that fits over the end of the pipe and is prevented from sliding by the lugs on the end of the pipe. The fitting is then fitted over the lugs and the cartridge and bolted down using a cross pattern to prevent stripping the bolts. All 3” 4”, and 6” pipes come from the factory pre-lugged, but if field cutting is required, the lugs need to be made using a Transair lugging tool and die.
For full installation instructions, download our installation manual, or watch our installation videos.
Markets:
• Automotive Assembly
• Food & Beverage
• Packaging
• Industrial Plants
• Aerospace
Features / Benefits:
• Quick connection technology
• Modular and reusable
• Corrosion resistant
• Full-bore design
• Optimum flow rate
• 100% recyclable
• Faster installation
• Lower installation costs
• Immediate pressurization
• Lightweight
• 10-year Warranty
Applications:
• Compressed Air
• Vacuum
• Industrial/Inert Gasses (i.e. Argon, Nitrogen, Carbon Dioxide)
Maximum Working Pressure:
• 1/2”to 4”: 232psi (16 bar) when the system is operated between -4 to +113 F (-20 to +46.1 C)
• 6” to 8”: 188psi (13 bar) when the system is operated between -4 to +140 F (-20 to + 60 C)
Maximum Working Temperature:
• 185°F when system is operated at 101psi or lower
• 158°F when the system is operated at 145psi or lower
• 140°F when the system is operated at 188psi or lower
• 115°F when the system is operated at 232psi or lower (1/2" to 4" Only)
The “full bore” design of Transair fittings, paired with the low coefficient of friction in the aluminum pipe ensures optimal flow throughout the compressed air system. All fittings are 100% recyclable, silicone free, and made from materials with no propagation of flame. All fittings conform to the UL94HB standard. Parker Hannifin warrants all Transair components to be free of defects in material and workmanship for 10 years from the date of installation.
Transair 1/2” (16.5mm), 1” (25mm), and 1-1/2” (40mm) fittings use push-to-connect technology. All fittings ship from the factory pre-torqued and marked. To install, just push the pipe into the fitting until the insertion mark meets the end of the fitting. There is no need to tighten the nut of the fitting further. All 1/2” 1”, and 1-1/2”; pipes come from the factory with the insertion depth pre-marked, but if field cutting is required, the insertion depth needs to be marked using a Transair marking tool.
Transair 2” (50mm) and 2-1/2” (63mm) fittings use snap ring technology. With a snap ring fitting, a polyamide retaining ring is inserted into 2 holes at the end of the pipe. This ring, along with tightening the fitting nuts with a spanner wrench, prevents the fitting from coming off the pipe. All 2”and 2-1/2” pipes come from the factory with the snap ring holes pre-drilled, but if field cutting is required, the snap rings holes need to be drilled using a Transair Drill Jig.
Transair 3” (76mm), 4” (101mm), and 6” (168mm) fittings use clamshell technology. The clamshell fitting has a removable cartridge (seal) that fits over the end of the pipe and is prevented from sliding by the lugs on the end of the pipe. The fitting is then fitted over the lugs and the cartridge and bolted down using a cross pattern to prevent stripping the bolts. All 3” 4”, and 6” pipes come from the factory pre-lugged, but if field cutting is required, the lugs need to be made using a Transair lugging tool and die.
For full installation instructions, download our installation manual, or watch our installation videos.
Markets:
• Automotive Assembly
• Food & Beverage
• Packaging
• Industrial Plants
• Aerospace
Features / Benefits:
• Quick connection technology
• Modular and reusable
• Corrosion resistant
• Full-bore design
• Optimum flow rate
• 100% recyclable
• Faster installation
• Lower installation costs
• Immediate pressurization
• Lightweight
• 10-year Warranty
Applications:
• Compressed Air
• Vacuum
• Industrial/Inert Gasses (i.e. Argon, Nitrogen, Carbon Dioxide)
Maximum Working Pressure:
• 1/2”to 4”: 232psi (16 bar) when the system is operated between -4 to +113 F (-20 to +46.1 C)
• 6” to 8”: 188psi (13 bar) when the system is operated between -4 to +140 F (-20 to + 60 C)
Maximum Working Temperature:
• 185°F when system is operated at 101psi or lower
• 158°F when the system is operated at 145psi or lower
• 140°F when the system is operated at 188psi or lower
• 115°F when the system is operated at 232psi or lower (1/2" to 4" Only)
| Weight | 0.16 lb |
| Brand | Parker |
| Brand | Transair |
| Division | Low Pressure Connectors Europe Division |
| Division | Fluid System Connectors Division |
| Industry | General Industrial |
| Application | Compressed Air |
| Application | Vacuum |
| Application | Industrial Gas |
| Application | Inert Gas |
| Technology | Pneumatics |
| Technology | Fluid & Gas Handling |
| Product Type | Compressed Air Piping |
| Maximum Operating Pressure | 232 psi |
| Maximum Operating Pressure | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca |
| Shape | Straight |
| Configuration | Pipe to Pipe |
| Maximum Operating Temperature | 185 °F |
| Maximum Operating Temperature | 85 °C |
| Minimum Operating Temperature | -4 °F |
| Minimum Operating Temperature | -20 °C |
| For Fluid Type | Air |
| For Fluid Type | Industrial Gas |
| Vacuum Pressure Rating | 1 mbar |
| Vacuum Pressure Rating | 0.03 inch-Hg |
| Specifications Met | EN 755.2 |
| Specifications Met | EN 755.8 |
| Specifications Met | EN 573.3 |
| Specifications Met | ISO 9001 |
| Specifications Met | ASME B31.1 - 31.9 |
| Specifications Met | ISO 8573 (Air Quality) |
| Specifications Met | TUV |
| Quantity per Box | 10 |
| Specifications Met | CE 2014/68/EU |
| Connection 1 Size | 1/2 inch |
| Connection 1 Size | 16.5 mm |
| Connection 2 Size | 16.5 mm |
| Product Style | Union Fitting |
| Connection 1 Type | Pipe |
| Connection 2 Type | Pipe |
| Assembly Time | 0.04 Hours |
| Body Material | Technical Polymer |
| Connection 2 Size | 1/2 inch |
| Weight | 0.065 kg |
| 3515 Transair Catalog | view |
| Transair 1/2\ to 1-1/2\ (16.5 to 40 mm) Installation Video | view |
| A comprehensive view of the Transair product line in a reference brochure format. | view |
| This manual covers how to install Transair aluminum piping, stainless steel piping, and 316L drops. | view |
| Transair is rated for inert gas conveyance. Download the bulletin to learn more about using Transair for inert gas conveyance. | view |
| Transair System Overview | view |
| Transair 2\ to 2-1/2\ (50 to 63 mm) Installation Video | view |
| Watch Transair aluminum piping go pipe-to-pipe against the traditional compressed air pipes Copper and Carbon Steel. | view |
| This video demonstrates the assembly procedures for the 3\ to 6\ (76 to 168 mm) pipe. | view |
| This website lists the CRN numbers for Transair products by Canadian province. | view |
| Transair Drop Bracket Installation Video | view |
| Visit the Transair website for the latest product info, design tools, and videos realted to Transair piping systems. | view |
| This document provides an overview of the regulations Transair aluminum and stainless steel products meet. Copies of the individual certifications are available upon request. | view |
| 6606 17 00 | Part Solutions |
